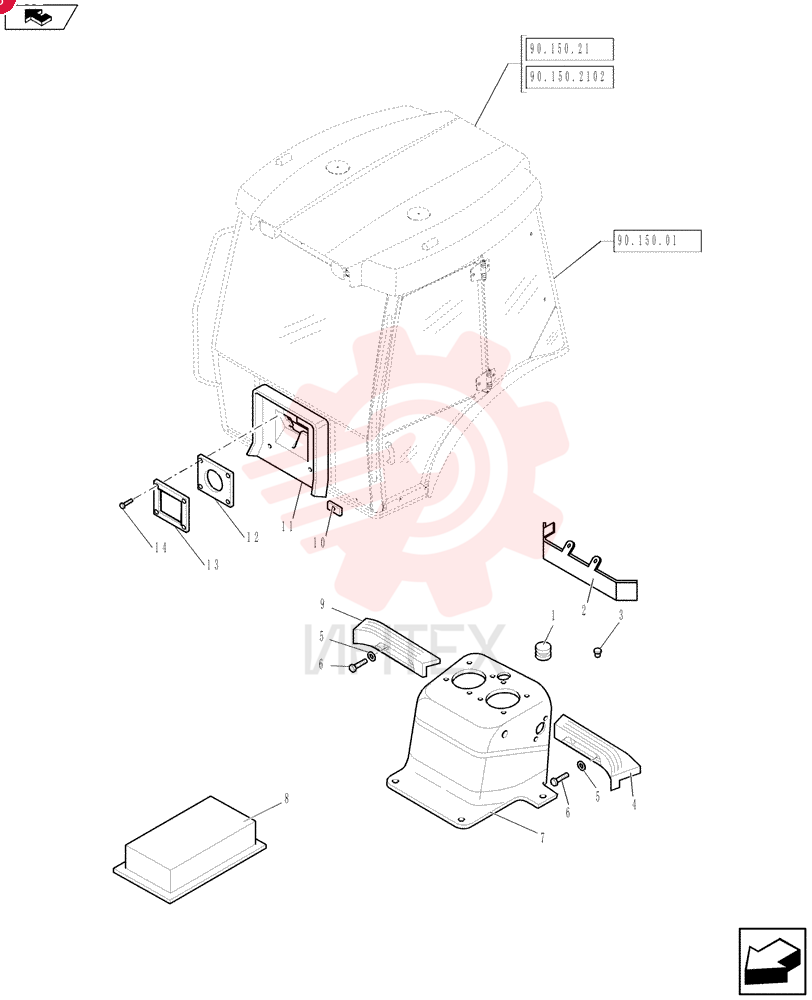

(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/
PLUG,33mm OD

PLUG,33mm OD

PLUG,33mm OD

1 82001909

  • 82001909 - PLUG
  • 33mm OD

2 87323749

  • 87323749 - BRACKET

3 87319803

  • 87319803 - PLUG
  • Transparent

4 85804864

  • 85804864 - FOOTREST

5 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

6 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

7 84174982

  • 84174982 - CONSOLE

8 4999021

  • 4999021 - GASKET

9 85804863

  • 85804863 - FOOTREST

10 85812080

  • 85812080 - NUT

11 84478022

  • 84478022 - BULKHEAD

12 84498262

  • 84498262 - GROMMET
  • 80mm L
  • 90mm L
  • 30mm L

13 84423177

  • 84423177 - MOUNTING PLATE

14 86625180

  • 86625180 - SCREW
  • HEX
  • 10-24X3/4 x 0.75 TT HWHD ZND
