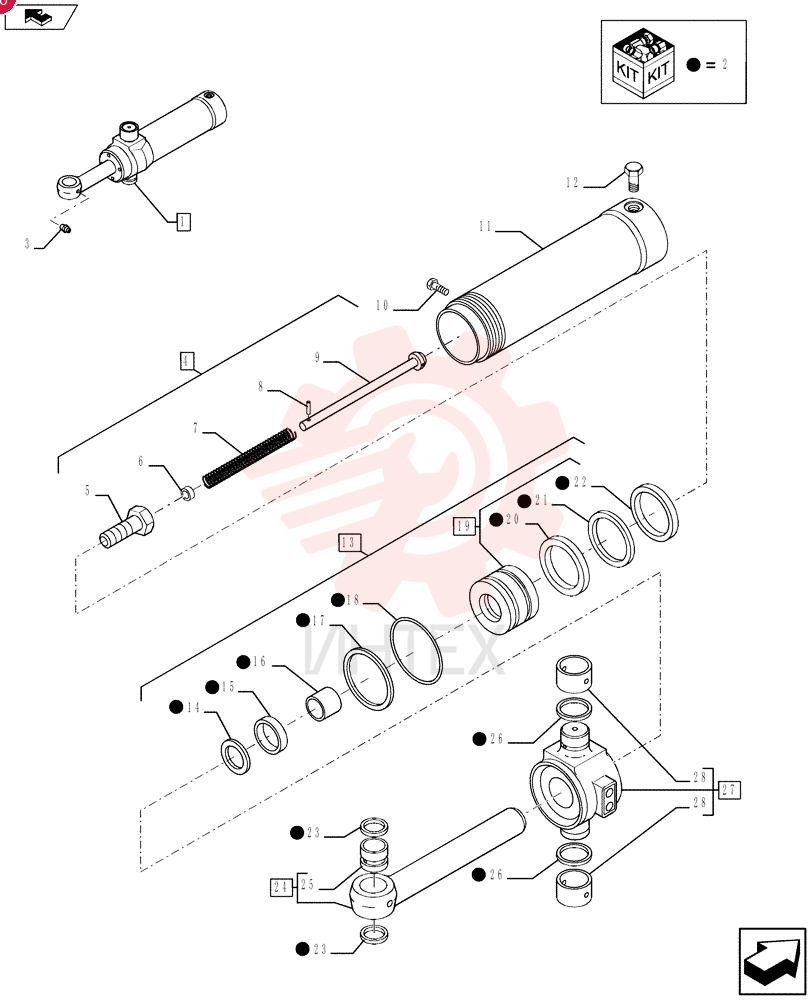

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 110mm Bore, 222.84mm Stroke
1 87315529
- 87315529 - HYDRAULIC CYLINDER
- Double Acting
- 50mm Rod
- 110mm Bore
- 222.84mm Stroke
2 87315529R
- 87315529R - REMAN-HYD CYLINDER
3 87315529C
- 87315529C - CORE-HYD CYLINDER
4 87428631
- 87428631 - SEAL KIT
- 50mm Rod x 110mm Bore
5 83416242
- 83416242 - LUBE NIPPLE
- Straight
- 1/8"-27 x 0.66"
6 87424935
- 87424935 - BOLT
- Hex
- M30 x 2 x 80mm
7 87428014
- 87428014 - BOLT
- Hex
- M30 x 2 x 80mm
- Cl 12.9
- Drilled
8 83998909
- 83998909 - BUSHING
- 9.65mm ID x 14.86mm OD x 9.25mm L
9 83931313
- 83931313 - SPRING
- 13mm OD x 104mm L
10 83910599
- 83910599 - PIN
- 3.97mm OD x 25.4mm L
11 85800990
- 85800990 - ROD
- 9.61mm OD x 170.5mm L
12 276-2456
- 276-2456 - SELF-TAP SCREW
- Hex Hd
- #10 x 3/8"
13 87455335
- 87455335 - CYLINDER HEAD
- 110mm Bore D
14 353-779
- 353-779 - PLUG
- Sltd Hd
- 3/4"-16
- Yellow
- Plastic
- w/O-Ring
15 87445307
- 87445307 - KIT
- 50mm Rod x 110mm Bore
16 87414969
- 87414969 - WIPER SEAL
17 87414970
- 87414970 - SEAL KIT
- 50mm Rod
18 87414966
- 87414966 - NYLON BEARING
- 50mm ID x 53mm OD x 18mm W
19 87421149
- 87421149 - O-RING
- 0.139" Thk x 4.734" ID
- -248
- Cl 5
- 75 Duro
20 85800007
- 85800007 - BACK-UP RING
- 121.16mm ID x 126.64mm OD x 1.27mm Thk
21 87424838
- 87424838 - PISTON
- 109.57mm Bore
- 50mm Rod
- 45.15mm W
22 87414335
- 87414335 - SEAL
- 106.71mm ID x 111.43mm OD x 6.96mm Thk
23 87414343
- 87414343 - RING
- Square
- 5.28mm Thk x 94.16mm ID
24 87408636
- 87408636 - RING
- Locking
- 103.65mm ID x 110mm OD x 12.7mm Thk
25 83931289
- 83931289 - SEAL
- 43.38mm ID x 55.1mm OD x 3.18mm Thk
26 87433032
- 87433032 - ROD
- 50mm OD x 379mm L
27 85800303
- 85800303 - BUSHING
- 45.13mm ID x 55.07mm OD x 52mm L
28 83910601
- 83910601 - SEAL
- 63mm ID x 70mm OD
29 87445758
- 87445758 - TRUNNION
30 83912378
- 83912378 - BUSHING
- 62.8mm ID x 70mm OD x 33.5mm L
