(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

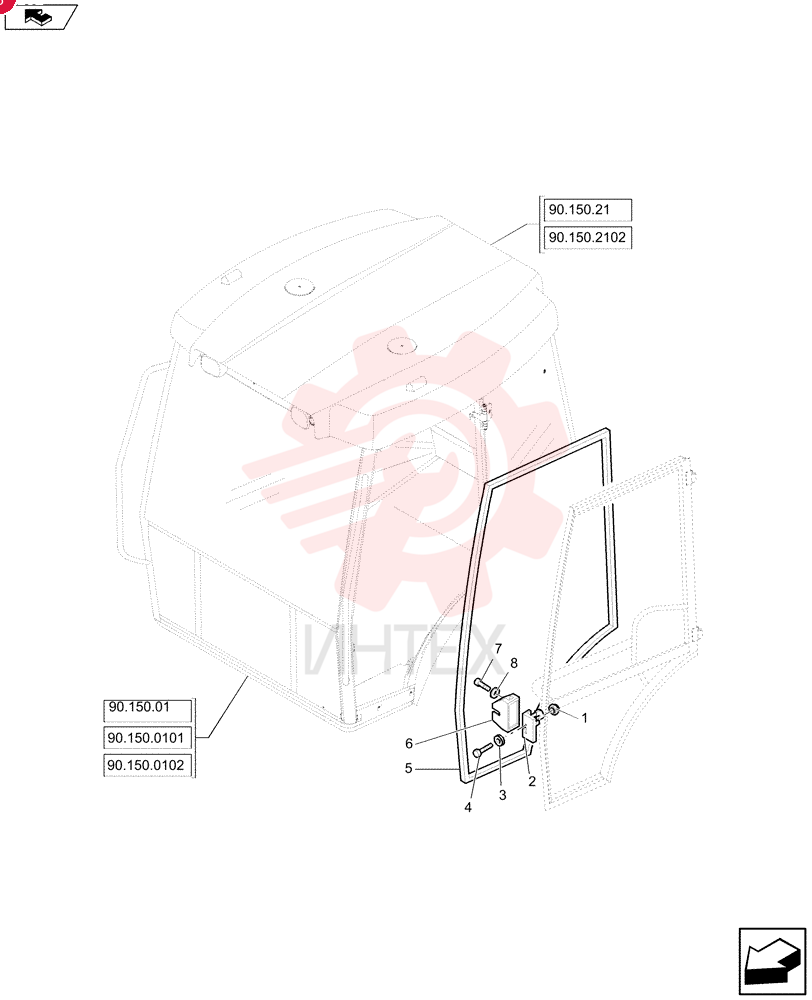

NUT,M8 x 1.25

NUT,M8 x 1.25

NUT,M8 x 1.25

1 14048214

  • 14048214 - NUT
  • M8 x 1.25

2 44910052

  • 44910052 - LH DOOR LOCK

3 44910053

  • 44910053 - RH DOOR LOCK

4 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

5 14442421

  • 14442421 - SCREW
  • Flat Csk Hd
  • M8 x 1.25 x 40mm
  • Cl 8.8

6 85812252

  • 85812252 - DOOR SEAL
  • RH Door
  • 4085mm L

7 85812253

  • 85812253 - DOOR SEAL
  • LH Door
  • 4085mm L

8 85805771

  • 85805771 - COVER

9 85805770

  • 85805770 - COVER

10 13273911

  • 13273911 - SCREW
  • Pozidriv Pan Hd
  • M5 x 10mm
  • Cl 5.8
  • Full Thd

11 12643701

  • 12643701 - WASHER
  • 6.15mm ID x 18mm OD x 1.5mm Thk
