(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

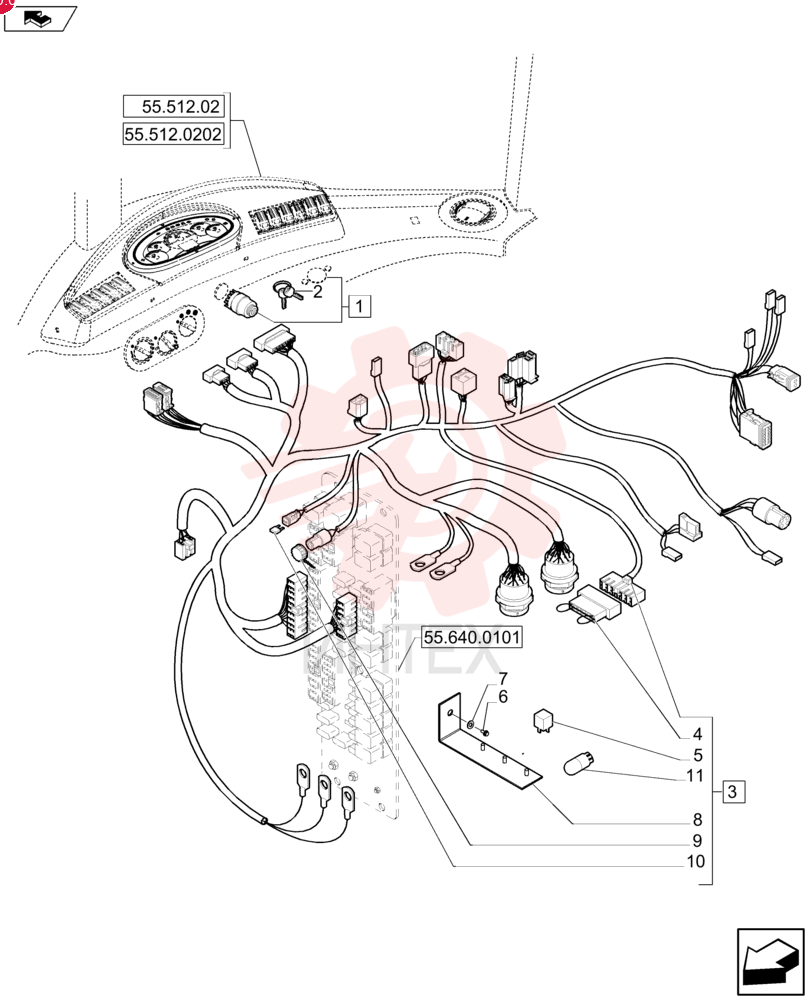

IGNITION SWITCH,7 Pins 87431469 (4)

IGNITION SWITCH,7 Pins 87431469 (4)

IGNITION SWITCH,7 Pins 87431469 (4)

1 87431469

  • 87431469 - IGNITION SWITCH
  • 7 Pins

2 85804675

  • 85804675 - IGNITION KEY

3 84565065

  • 84565065 - WIRE HARNESS

4 47480070

  • 47480070 - WIRE HARNESS

5 47558322

  • 47558322 - WIRE HARNESS

6 47659671

  • 47659671 - WIRE HARNESS

7 85821410

  • 85821410 - BLOCK

8 85825198

  • 85825198 - RELAY
  • Mini
  • W/ Diode

9 10902624

  • 10902624 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
  • Full Thd

10 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

11 84495017

  • 84495017 - BRACKET

12 47492913

  • 47492913 - BRACKET

13 87640751

  • 87640751 - PLUG
  • 40mm

14 87693742

  • 87693742 - FUSE
  • 5A

15 87433891

  • 87433891 - ADAPTER
  • 3A
