(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

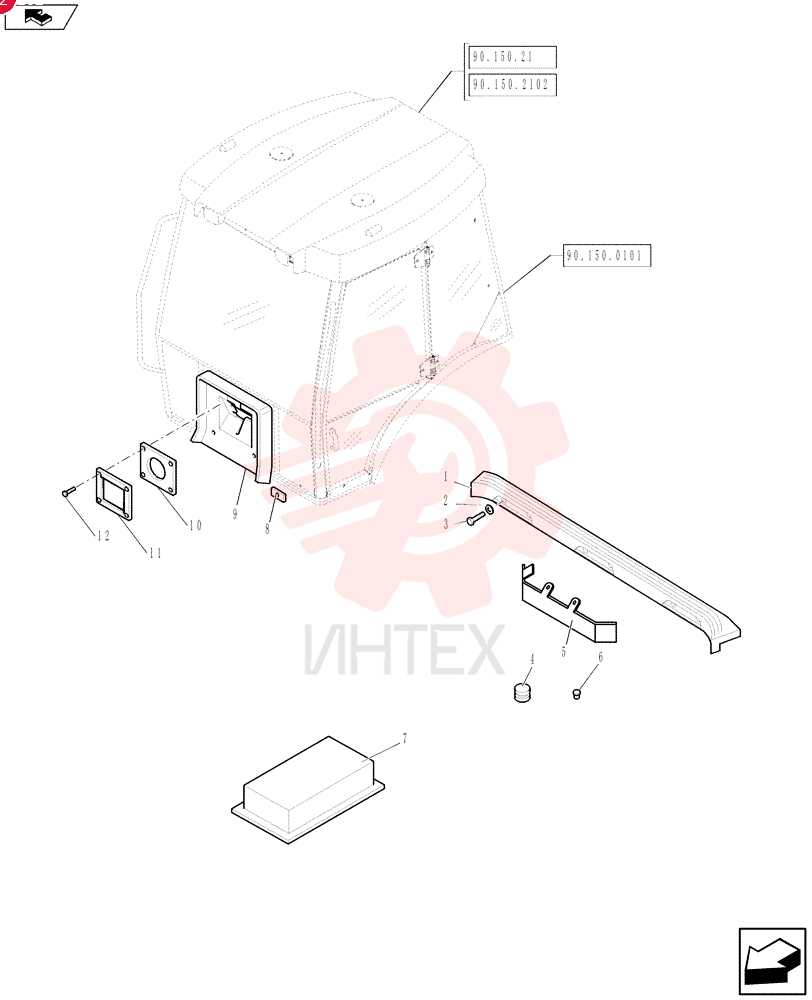

PANEL 87410385 (2)

PANEL 87410385 (2)

PANEL 87410385 (2)

1 87410385

  • 87410385 - PANEL

2 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

3 16043824

  • 16043824 - SCREW
  • Hex
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
  • DAC

4 82001909

  • 82001909 - PLUG
  • 33mm OD

5 87323749

  • 87323749 - BRACKET

6 87319803

  • 87319803 - PLUG
  • Transparent

7 4999021

  • 4999021 - GASKET

8 85812080

  • 85812080 - NUT

9 84478022

  • 84478022 - BULKHEAD

10 84414503

  • 84414503 - GROMMET

11 84423177

  • 84423177 - MOUNTING PLATE

12 86625180

  • 86625180 - SCREW
  • HEX
  • 10-24X3/4 x 0.75 TT HWHD ZND
