(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

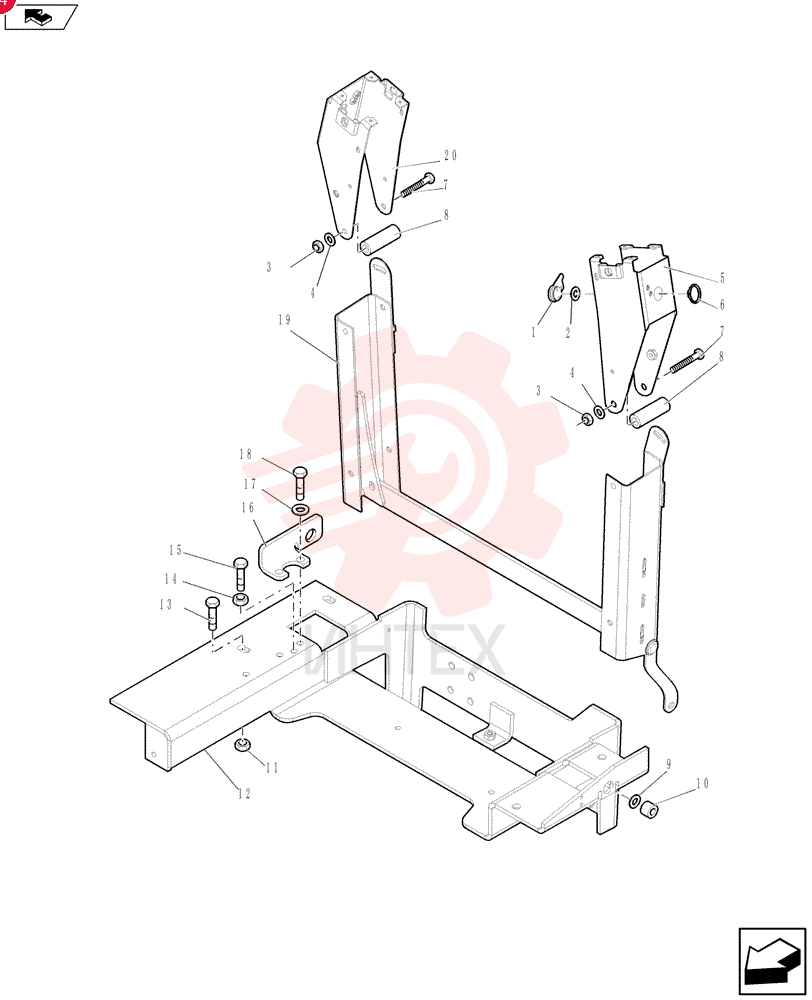

LEVER 87453118

LEVER 87453118

LEVER 87453118

1 87453118

  • 87453118 - LEVER

2 87405706

  • 87405706 - WAVE WASHER
  • 27mm ID x 34mm OD x 2.52mm Thk

3 47049041

  • 47049041 - NUT
  • Hex
  • M10 x 1.5
  • Cl 8

4 47048969

  • 47048969 - WASHER
  • 11mm ID x 24mm OD x 2mm Thk

5 87453117

  • 87453117 - SUPPORT

6 85824053

  • 85824053 - CIRCLIP
  • #100
  • .925"
  • Ext

7 84058418

  • 84058418 - BOLT
  • Hex
  • M10 x 125mm
  • Cl 8.8

8 87453110

  • 87453110 - SPACER
  • 12mm ID x 17mm OD x 91mm L

9 85824054

  • 85824054 - WASHER

10 85824059

  • 85824059 - BUSHING
  • 19.15mm ID x 23.83mm OD x 10.6mm L

11 47049032

  • 47049032 - NUT
  • Hex
  • M12
  • Cl 10

12 87434992

  • 87434992 - SUPPORT

13 47049151

  • 47049151 - SCREW
  • M12 x 40mm
  • Cl 8.8

14 16100811

  • 16100811 - NUT
  • Hex
  • M8
  • 6.80mm
  • Cl 8
  • ZND

15 15213721

  • 15213721 - BOLT
  • Hex
  • M8 x 60mm
  • Cl 8.8
  • Full Thd

16 87427004

  • 87427004 - SUPPORT

17 47048992

  • 47048992 - LOCK WASHER
  • 8mm ID

18 47049082

  • 47049082 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8

19 87426960

  • 87426960 - PIVOT ASSY.

20 87453116

  • 87453116 - SUPPORT
