(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

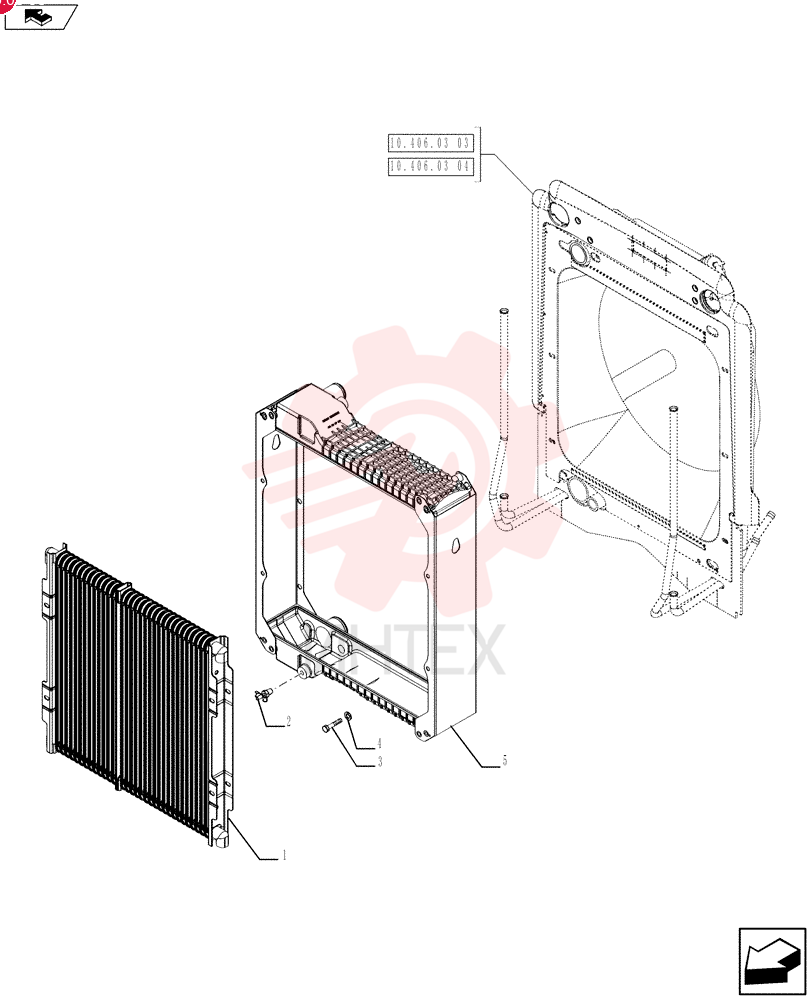

OIL COOLER 87441876 (3)

OIL COOLER 87441876 (3)

OIL COOLER 87441876 (3)

1 87441876

  • 87441876 - OIL COOLER

2 76904

  • 76904 - DRAINCOCK/TAP SUPPLY

3 336199

  • 336199 - BOLT
  • Hex
  • M8 x 1.25 x 12mm
  • Cl 8.8
  • Full Thd

4 140016

  • 140016 - WASHER
  • M8 x 16mm OD x 1.6mm Thk

5 84497735

  • 84497735 - RADIATOR
