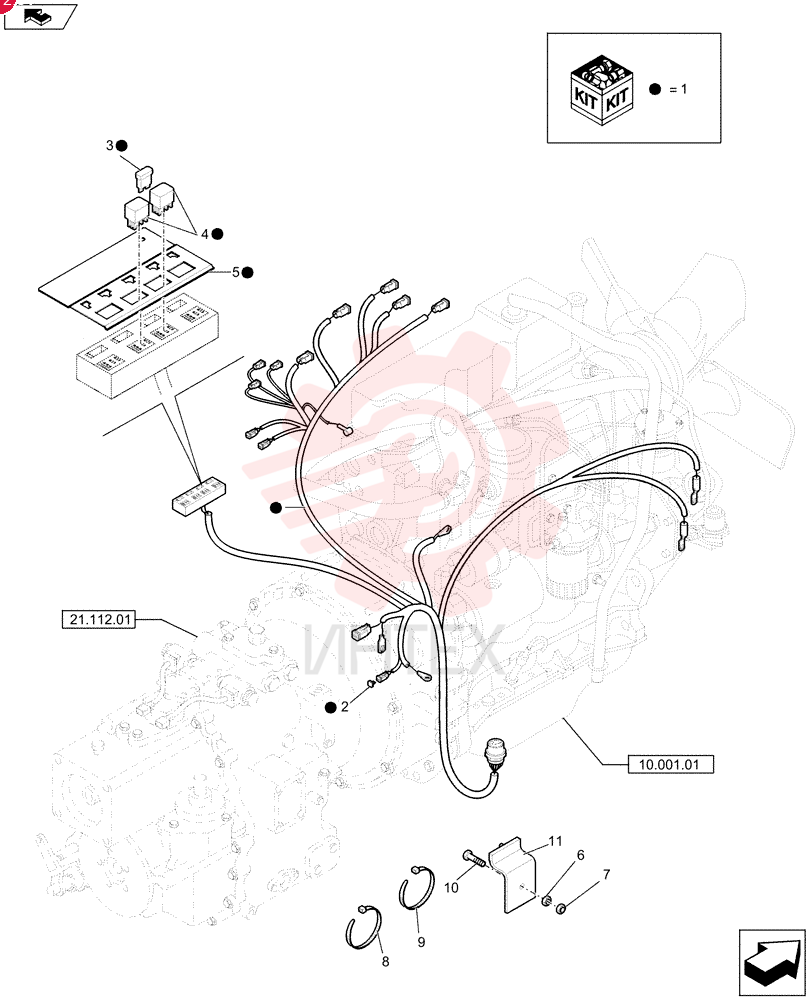

HARNESS 84386650 (2)

HARNESS 84386650 (2)

HARNESS 84386650 (2)

1 84386650

  • 84386650 - HARNESS

2 47480100

  • 47480100 - WIRE HARNESS

3 11054790

  • 11054790 - FUSE
  • 5 Amp
  • Type A

4 11055390

  • 11055390 - FUSE
  • 30A
  • Blade/Uni

5 72274965

  • 72274965 - RELAY
  • 12V
  • 70 Amp

6 84282180

  • 84282180 - SUPPORT

7 11701711

  • 11701711 - NUT
  • Hex
  • M10
  • Cl 8
  • ZND

8 87565124

  • 87565124 - NUT

9 87567355

  • 87567355 - CLAMP
  • 202mm L x 4.6mm W x 1.2mm Thk

10 87567356

  • 87567356 - CLAMP
  • 200mm L x 4.6mm W x 1.2mm Thk

11 47049186

  • 47049186 - BOLT
  • M10 x 30mm

12 87562089

  • 87562089 - COVER
