New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

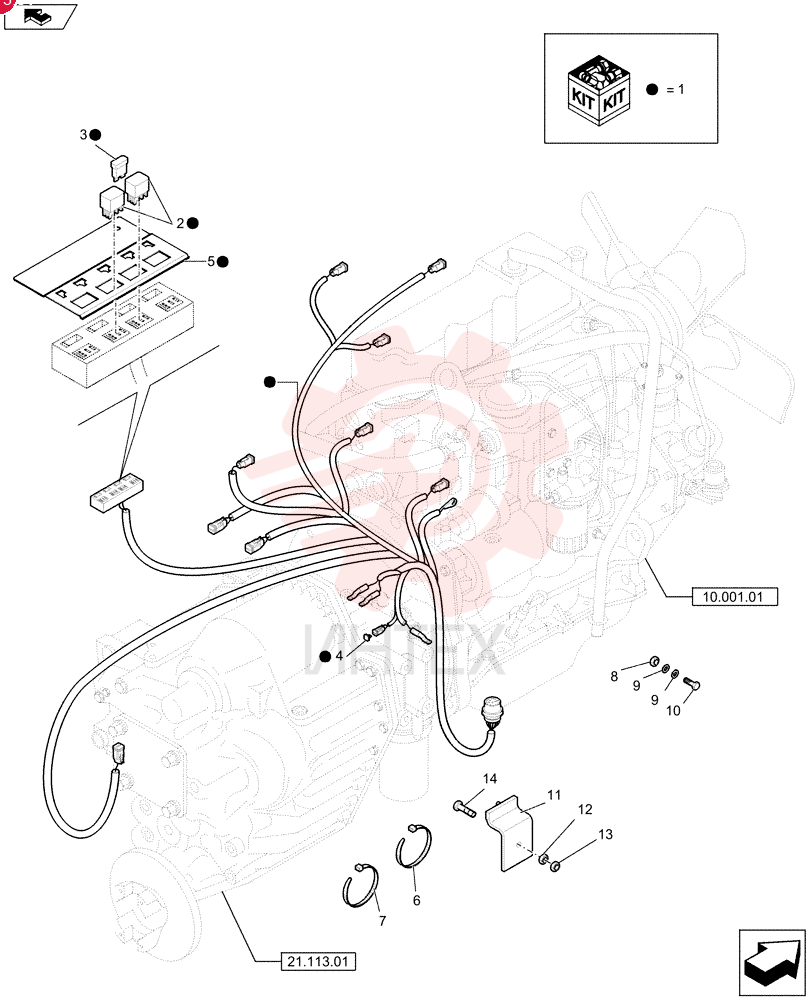

HARNESS 84386643 (2)

HARNESS 84386643 (2)

HARNESS 84386643 (2)

1 84386643

  • 84386643 - HARNESS

2 47480106

  • 47480106 - WIRE HARNESS

3 72274965

  • 72274965 - RELAY
  • 12V
  • 70 Amp

4 11055390

  • 11055390 - FUSE
  • 30A
  • Blade/Uni

5 11054790

  • 11054790 - FUSE
  • 5 Amp
  • Type A

6 84282180

  • 84282180 - SUPPORT

7 87567356

  • 87567356 - CLAMP
  • 200mm L x 4.6mm W x 1.2mm Thk

8 87567355

  • 87567355 - CLAMP
  • 202mm L x 4.6mm W x 1.2mm Thk

9 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

10 12638511

  • 12638511 - WASHER
  • M8 x 15 x 1.5

11 16044221

  • 16044221 - SCREW
  • Hex
  • M8 x 1.25 x 50mm
  • Cl 8.8

12 87562089

  • 87562089 - COVER

13 11701711

  • 11701711 - NUT
  • Hex
  • M10
  • Cl 8
  • ZND

14 87565124

  • 87565124 - NUT

15 47049186

  • 47049186 - BOLT
  • M10 x 30mm
