New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

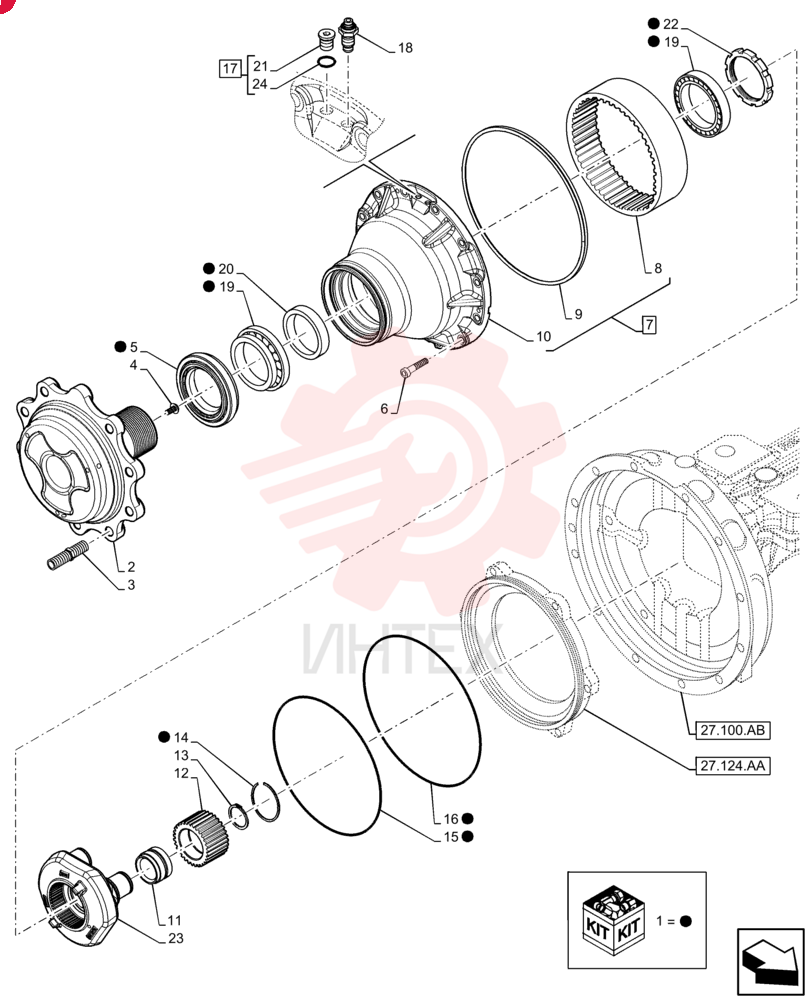

KIT 47579370

KIT 47579370

KIT 47579370

1 47579370

  • 47579370 - KIT

2 87708972

  • 87708972 - FLANGE

3 85808260

  • 85808260 - STUD

4 K395093

  • K395093 - HEADED PIN
  • 12mm OD x 15mm L

5 87538281

  • 87538281 - SHAFT SEAL

6 403955A1

  • 403955A1 - BOLT

7 87708969

  • 87708969 - RING GEAR

8 87708467

  • 87708467 - RING GEAR

9 87711038

  • 87711038 - RING

10 NSS

  • NSS - NOT SOLD SEPARAT

11 87708444

  • 87708444 - ROLLER BEARING

12 87708967

  • 87708967 - GEAR
  • 31T

13 800-1150

  • 800-1150 - SNAP RING
  • M50
  • Ext

14 87708453

  • 87708453 - SNAP RING

15 371144A1

  • 371144A1 - O-RING

16 87708438

  • 87708438 - O-RING

17 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB

18 E135810

  • E135810 - VENTING SCREW

19 K395101

  • K395101 - TAPERED BEARING
  • 109.5mm ID x 126mm x 21.4mm L

20 87708970

  • 87708970 - SPACER

21 NSS

  • NSS - NOT SOLD SEPARAT

22 NSS

  • NSS - NOT SOLD SEPARAT

23 87708452

  • 87708452 - PLANET CARRIER

24 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro
