(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

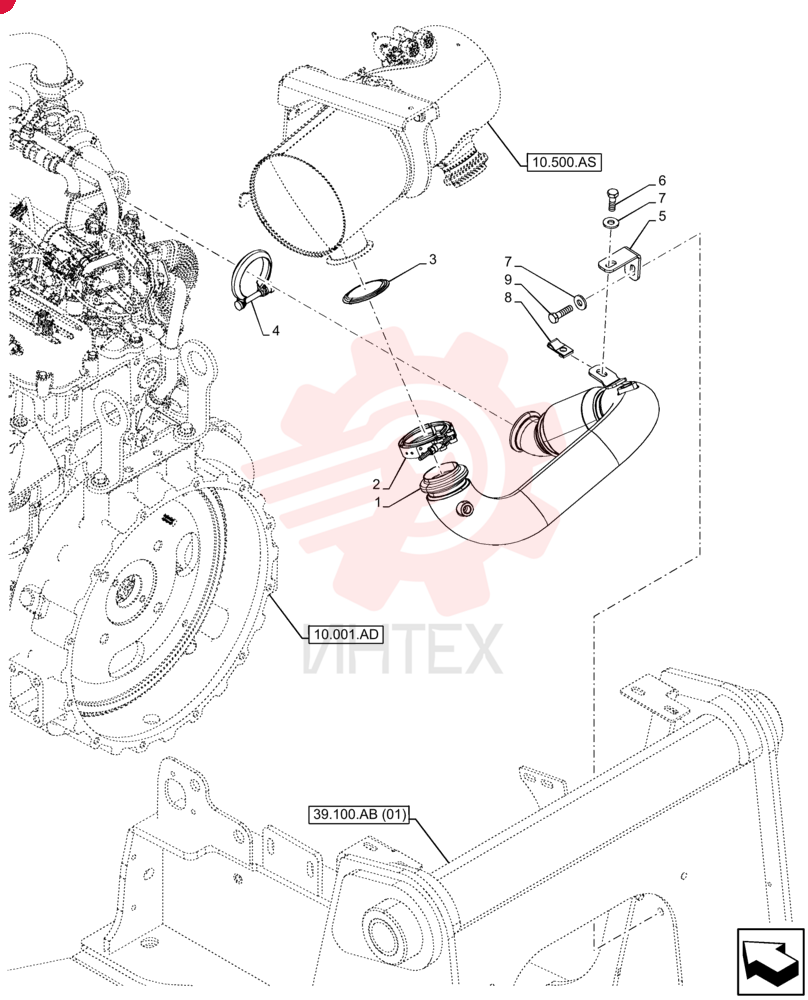

TUBE 47609868

TUBE 47609868

TUBE 47609868

1 47609868

  • 47609868 - TUBE

2 47468193

  • 47468193 - COLLAR CLAMP
  • 84.5mm ID

3 47489270

  • 47489270 - GASKET
  • 58.9mm ID

4 84347394

  • 84347394 - COLLAR CLAMP
  • 63.5mm - 70mm

5 47715212

  • 47715212 - BRACKET

6 43127

  • 43127 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8

7 87015284

  • 87015284 - WASHER
  • 8.8mm ID x 21.5mm OD x 2.5mm Thk

8 87016586

  • 87016586 - SPRING NUT
  • Multi-Thd
  • M8 x 1.25

9 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8
