New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

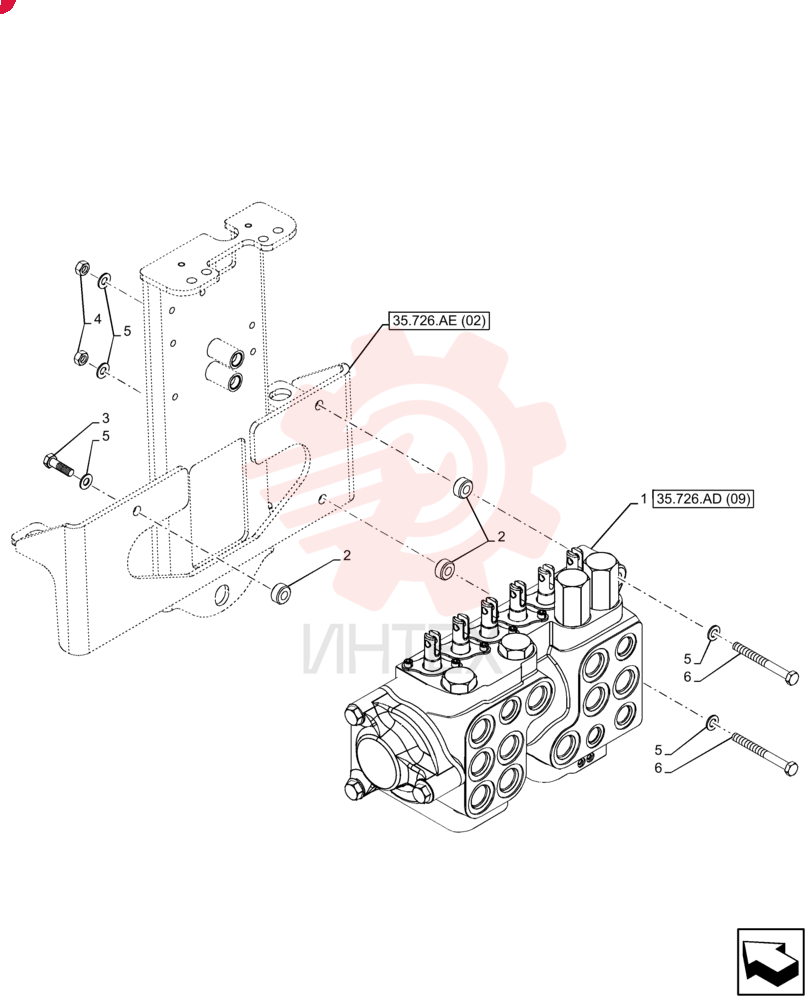

VALVE 47579591 (1)

VALVE 47579591 (1)

VALVE 47579591 (1)

1 47579591

  • 47579591 - VALVE

2 84170747

  • 84170747 - SPACER
  • 11.5mm ID x 25mm OD x 12.4mm Thk

3 9706704

  • 9706704 - BOLT
  • Hex
  • M10 x 1.5 x 41.58mm
  • Cl 8.8

4 12577211

  • 12577211 - LOCK NUT
  • M10 x 1.5mm Pitch
  • 12.30mm High
  • Cl 8
  • ZND

5 86624176

  • 86624176 - WASHER
  • 11mm ID x 20mm OD x 2mm Thk

6 120075

  • 120075 - BOLT
  • M10 x 1.5 x 106.58mm
  • Cl 8.8
