(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

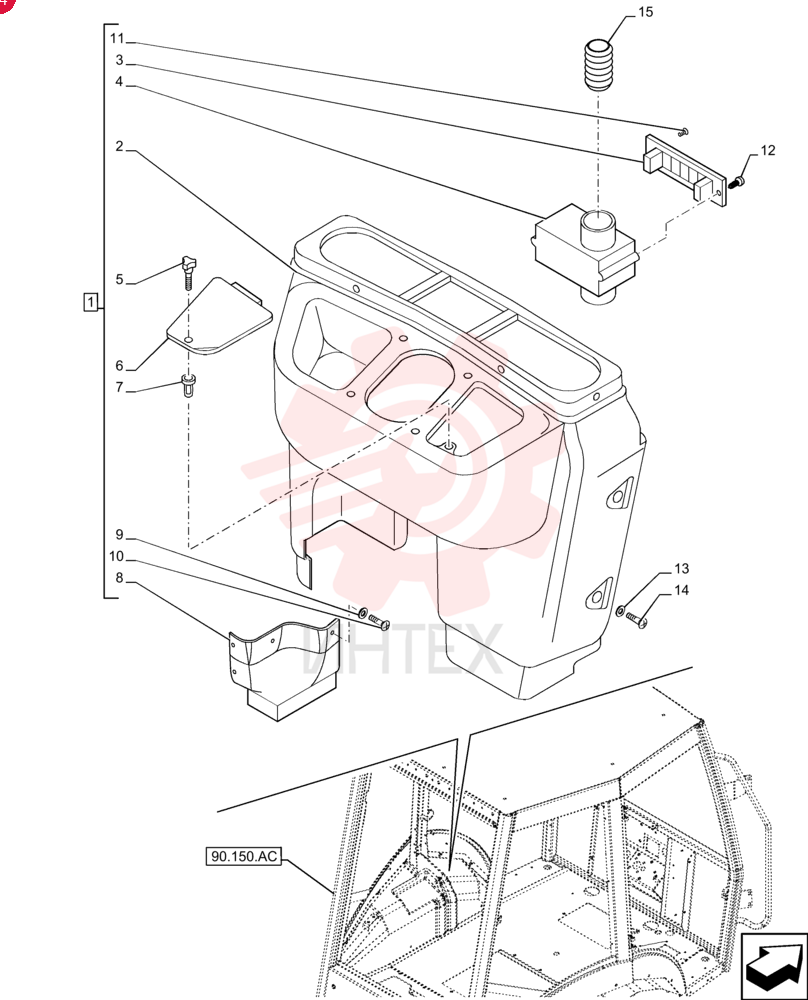

PANEL 47708236

PANEL 47708236

PANEL 47708236

1 47708236

  • 47708236 - PANEL

2 47708237

  • 47708237 - PANEL

3 85819454

  • 85819454 - DIFFUSER

4 85819567

  • 85819567 - AIR DUCT

5 85805323

  • 85805323 - KNOB

6 85806089

  • 85806089 - COVER

7 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L

8 84165560

  • 84165560 - TOP COVER

9 11181474

  • 11181474 - BELLEVILLE WASHER
  • M4 Bolt Size x 9mm OD x 0.7mm Thk

10 15963201

  • 15963201 - SELF-TAP SCREW
  • Posidriv Pan Hd
  • M4 x 2.5 x 14mm
  • Hi-Low

11 14440327

  • 14440327 - SCREW
  • Flat Csk Hd
  • M4 x 20mm
  • Cl 8.8

12 14568887

  • 14568887 - FASTENER
  • M8 x 0.7 x 29mm

13 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

14 79105220

  • 79105220 - SCREW
  • Phillips Drive
  • Oval HD
  • M6 x 20mm

15 85819592

  • 85819592 - SLEEVE
