(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

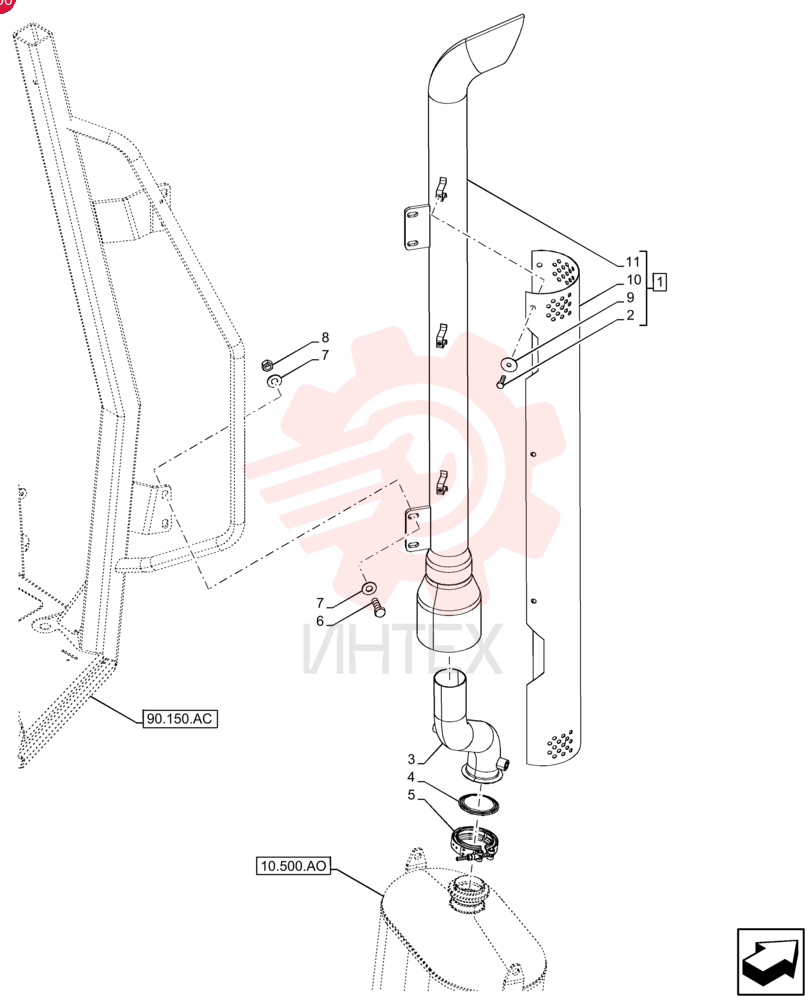

TUBE 47552170

TUBE 47552170

TUBE 47552170

1 47552170

  • 47552170 - TUBE

2 47537722

  • 47537722 - HEAT SHIELD

3 47557089

  • 47557089 - TUBE

4 47489270

  • 47489270 - GASKET
  • 58.9mm ID

5 47468193

  • 47468193 - COLLAR CLAMP
  • 84.5mm ID

6 43140

  • 43140 - BOLT
  • Hex
  • M10 x 1.5 x 30mm
  • Cl 8.8

7 86625253

  • 86625253 - WASHER
  • 11mm ID x 24mm OD x 2mm Thk

8 86500689

  • 86500689 - NUT
  • M10 x 1.5
  • Cl 10

9 614-6020

  • 614-6020 - BOLT
  • Hex
  • M6 x 1 x 20mm
  • Cl 8.8
  • Full Thd

10 895-15006

  • 895-15006 - WASHER
  • 6.6mm ID x 25mm OD x 1.6mm Thk

11 NSS

  • NSS - NOT SOLD SEPARAT
