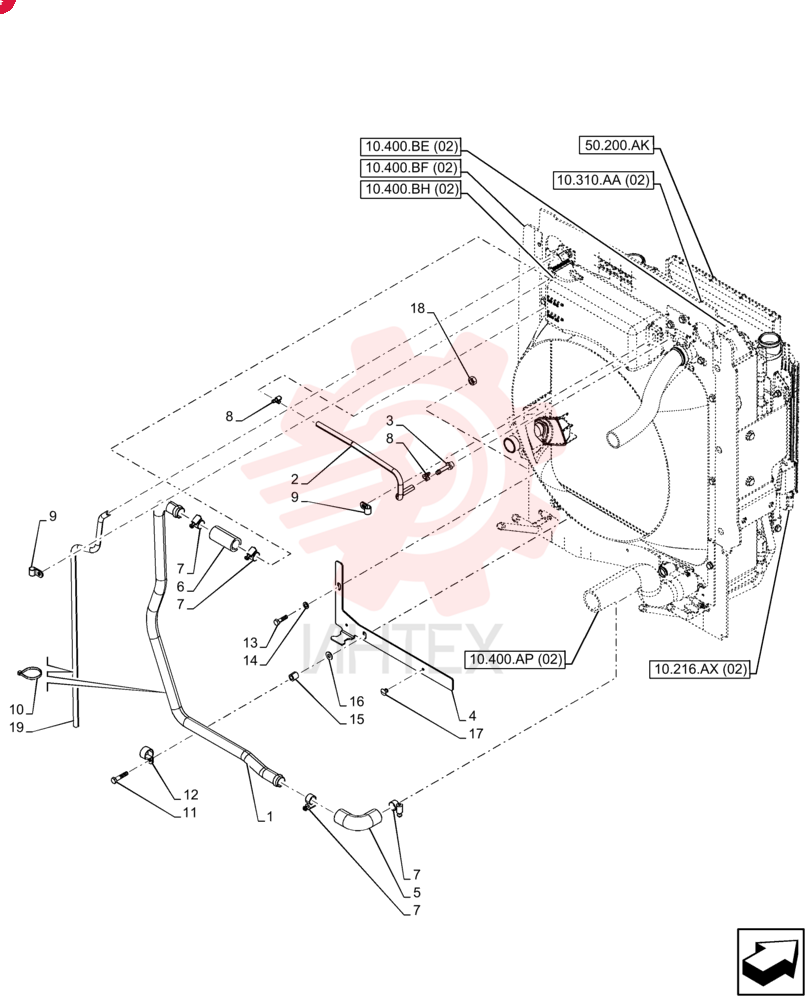

TUBE 47506717 (2)
1 47506717
- 47506717 - TUBE
2 87715487
- 87715487 - RADIATOR HOSE
- 7.90 mm ID x 440.00 mm
- SAE J30
- SAE 30R6 Or SAE 20 R4 Class D1
3 87301325
- 87301325 - FITTING
- 5/16" Hose X 1/4" NPTF Beaded
4 87446082
- 87446082 - RETAINING PLATE
- 390mm x 195mm x 43mm L
5 87454376
- 87454376 - HOSE
- 25mm ID
- 29.95mm OD
- 90 Degree
6 87367622
- 87367622 - HOSE
- 25.40 mm ID x 60.00 mm
- SAE 20R3 CLASS D-1 Or D-2
7 514920
- 514920 - HOSE CLAMP
- 20.6mm - 38.1mm
- Worm Gear
8 574518
- 574518 - HOSE CLAMP
- 6.3mm - 15.7mm
- SAE # 4
9 86625036
- 86625036 - CLAMP
- 12.7mm
- Coat
- 8.7mm Bolt Hole
- P Type
10 87000312
- 87000312 - CABLE TIE
- 4.8mm W x 203.2mm OAL
- Nylon
11 120106
- 120106 - BOLT
- M8 x 1.25 x 45.45mm
- Cl 8.8
12 86637977
- 86637977 - CLAMP
- 25.4mm
- Coat
- 8.7mm Bolt Hole
- P Type
13 43128
- 43128 - BOLT
- M8 x 1.25 x 30mm
- Cl 8.8
14 140016
- 140016 - WASHER
- M8 x 16mm OD x 1.6mm Thk
15 87418360
- 87418360 - SPACER
- 9.8mm ID x 16mm OD x 16mm W
16 86625263
- 86625263 - WASHER
- 9mm ID x 20mm OD x 1.6mm Thk
17 87301356
- 87301356 - RIVET
- Pop
- 3/16" x .700"
18 412250
- 412250 - NUT
- M8 x 1.25
- Cl 8
19 87616934
- 87616934 - HOSE
- 6.35mm ID x 750mm L
- SAE 30R6
