(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

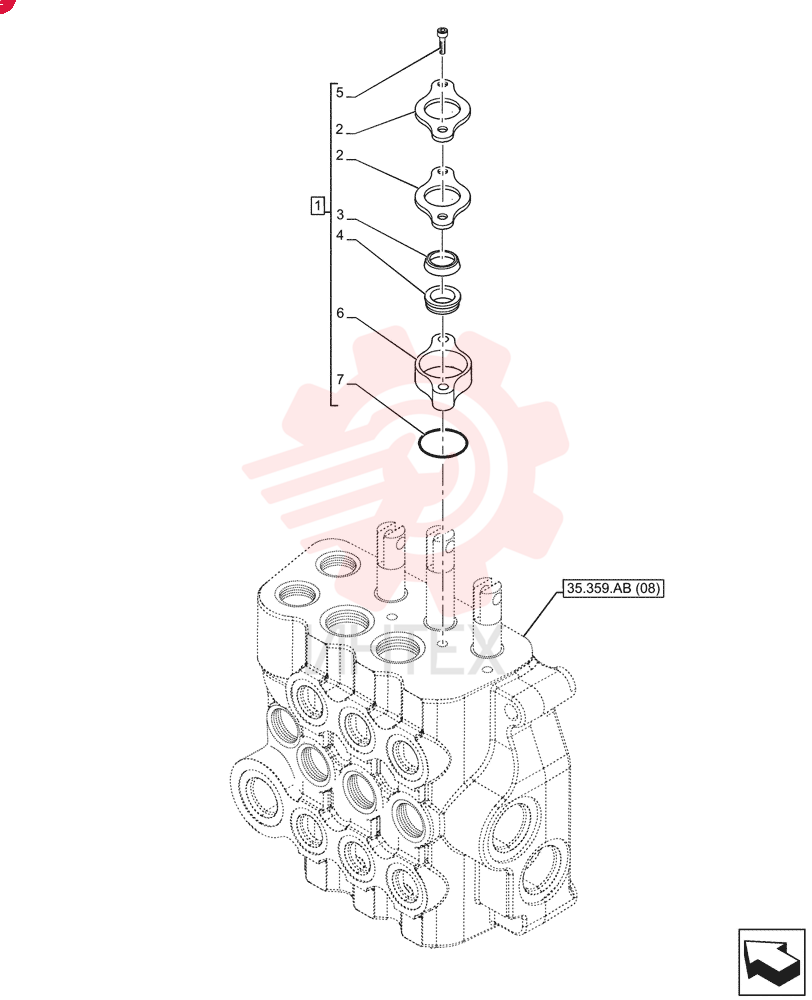

SEAL 87541940 (2)

SEAL 87541940 (2)

SEAL 87541940 (2)

1 87541940

  • 87541940 - SEAL

2 87455536

  • 87455536 - RETAINING PLATE

3 71103058

  • 71103058 - O-RING

4 85999136

  • 85999136 - SEAL
  • 17.6mm ID x 26.84mm OD x 5.42mm Thk

5 87455534

  • 87455534 - HEX SOC SCREW

6 87455539

  • 87455539 - SPACER

7 87455538

  • 87455538 - O-RING
  • 0.125" Thk x 1" ID
  • -214
  • 70 Duro
