(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

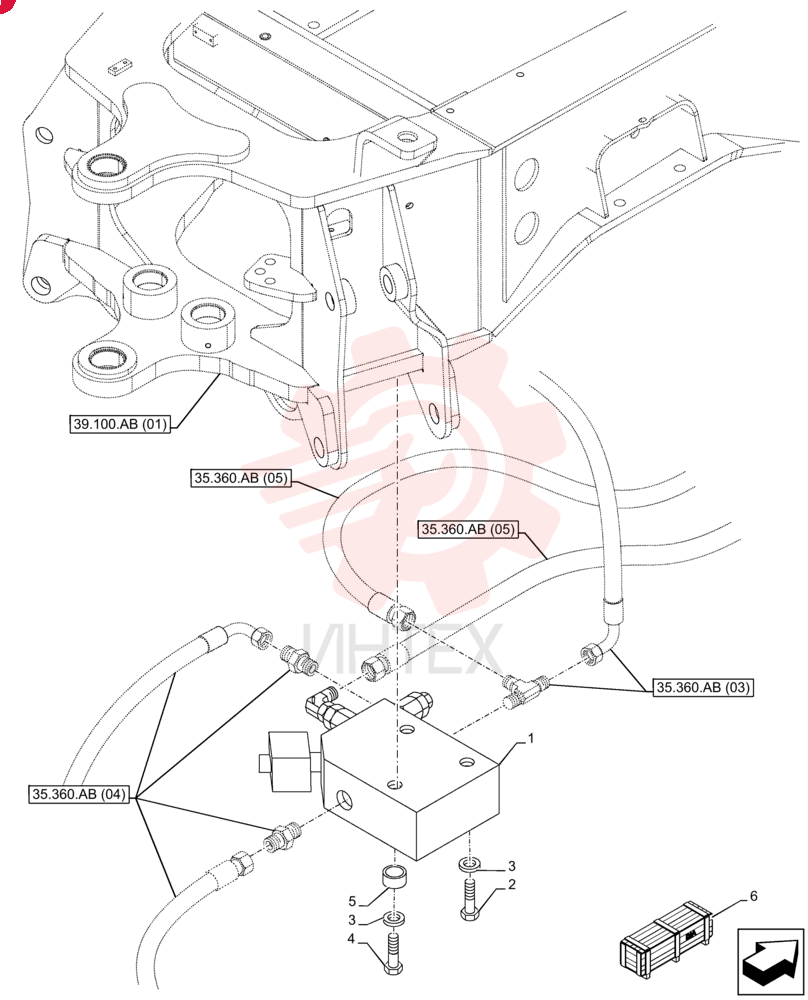

VALVE 87545337 (2)

VALVE 87545337 (2)

VALVE 87545337 (2)

1 87545337

  • 87545337 - VALVE

2 16044821

  • 16044821 - SCREW
  • Hex
  • M8 x 80mm
  • Cl 8.8

3 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

4 395851

  • 395851 - BOLT
  • Hex
  • M8 x 1.25 x 90mm
  • Cl 8.8
  • Full Thd

5 85802901

  • 85802901 - SPACER
  • 10mm ID x 16mm OD x 17.5mm L

6 741704119

  • 741704119 - CONSTRUCTION DIA

7 718724139

  • 718724139 - CONSTRUCTION DIA
