(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

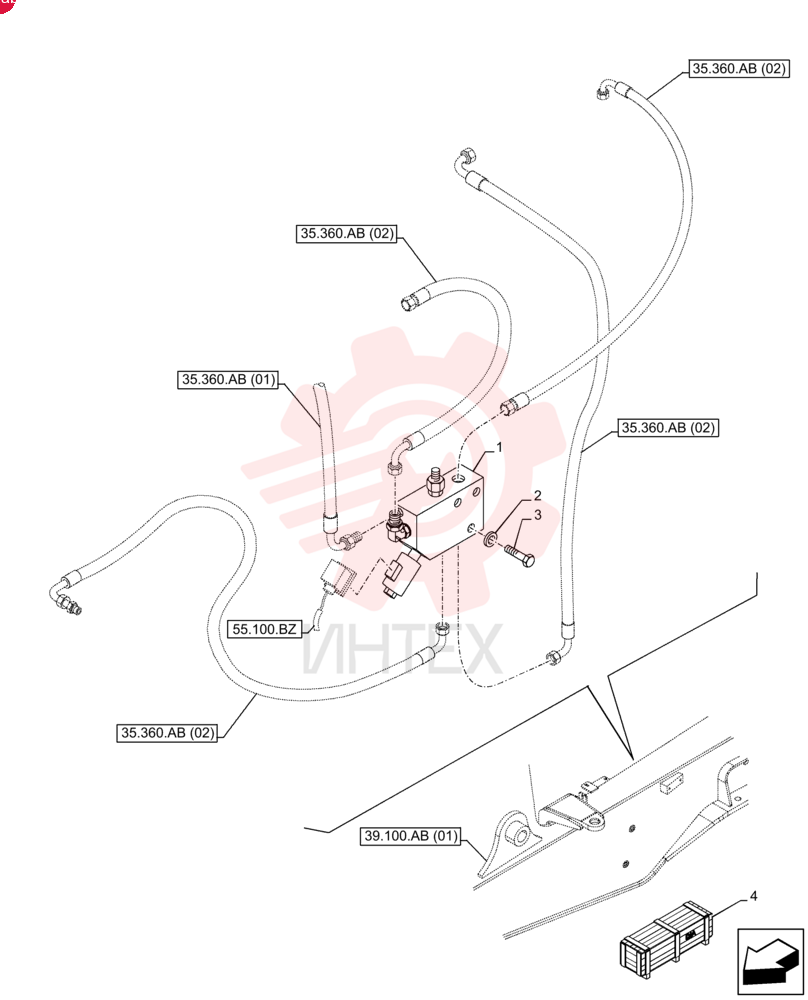

VALVE 87545337 (1)

VALVE 87545337 (1)

VALVE 87545337 (1)

1 87545337

  • 87545337 - VALVE

2 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

3 16044521

  • 16044521 - SCREW
  • Hex
  • M8 x 65mm
  • Cl 8.8

4 741704119

  • 741704119 - CONSTRUCTION DIA
