New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

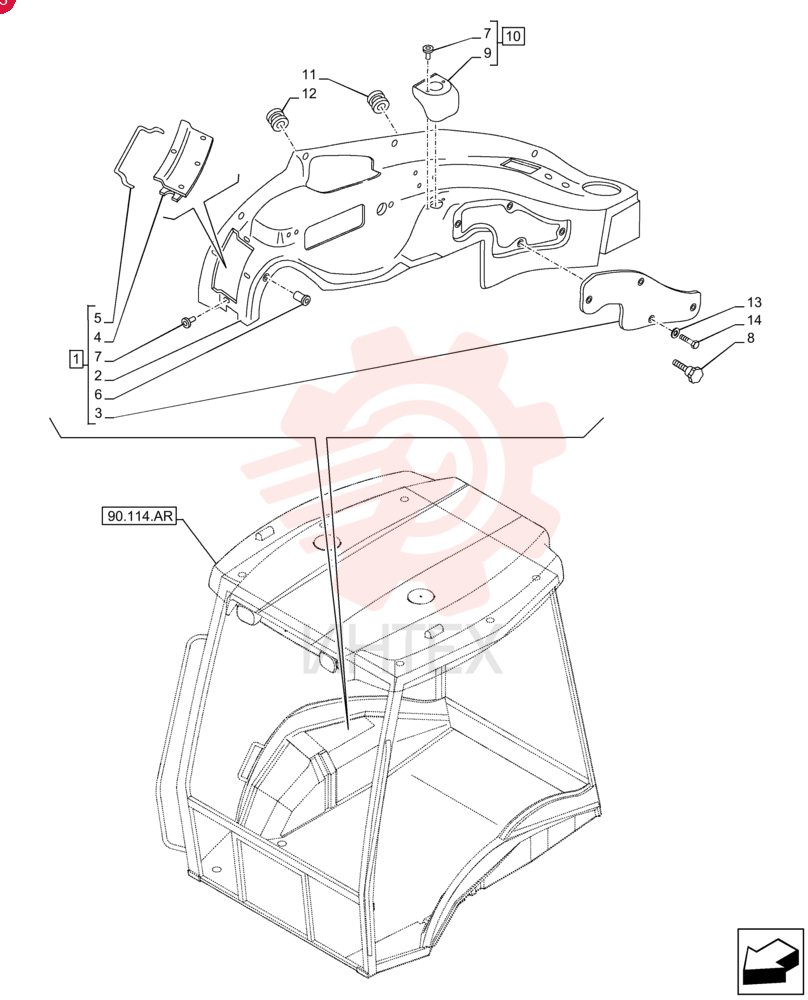

SOFT TRIM 87543706

SOFT TRIM 87543706

SOFT TRIM 87543706

1 87543706

  • 87543706 - SOFT TRIM

2 NSS

  • NSS - NOT SOLD SEPARAT

3 85801649

  • 85801649 - SOFT TRIM

4 85825191

  • 85825191 - COVER

5 85806023

  • 85806023 - SEALING STRIP

6 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L

7 85805819

  • 85805819 - THREADED BUSHING
  • M5 x 17mm L

8 85805323

  • 85805323 - KNOB

9 NSS

  • NSS - NOT SOLD SEPARAT

10 87540633

  • 87540633 - DASHBOARD

11 10398980

  • 10398980 - GROMMET
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk

12 10398680

  • 10398680 - GROMMET
  • 25mm ID x 33mm GRV ø x 42mm OD x 15mm Thk

13 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

14 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd
