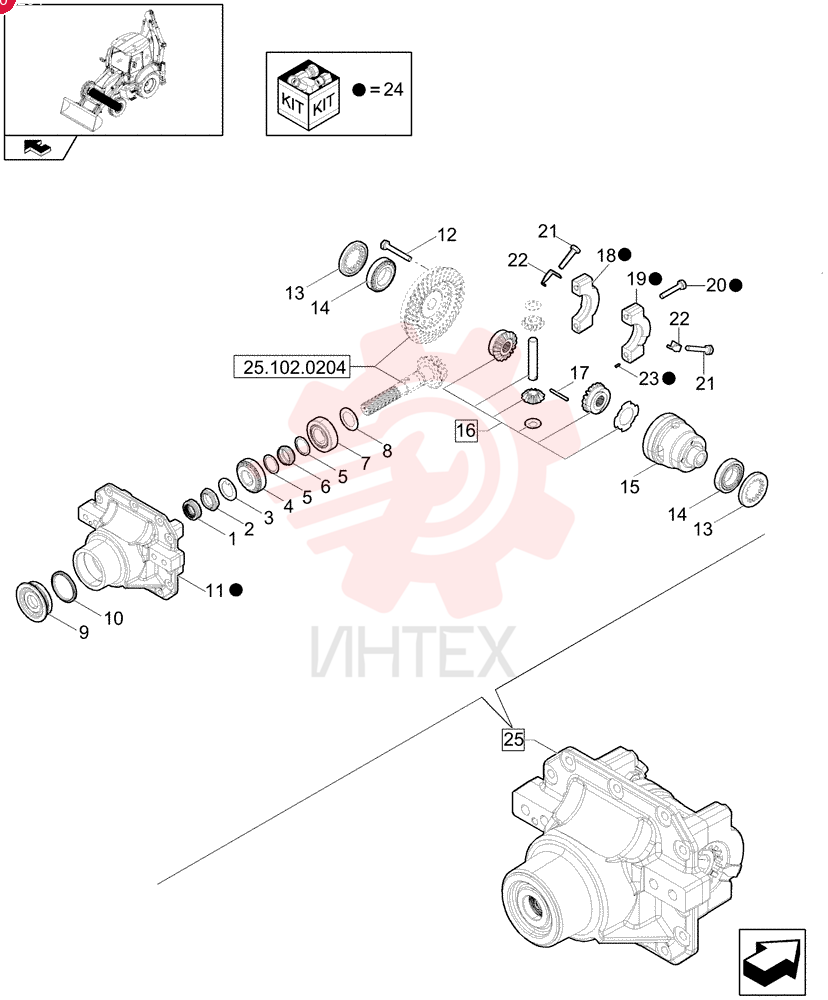

(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/
SEAL,35mm ID x 52mm OD x 18.2mm Thk

SEAL,35mm ID x 52mm OD x 18.2mm Thk

SEAL,35mm ID x 52mm OD x 18.2mm Thk

1 84258508

  • 84258508 - SEAL
  • 35mm ID x 52mm OD x 18.2mm Thk

2 84274691

  • 84274691 - NUT
  • M40 x 1.5

3 84161677

  • 84161677 - E-RING

4 87747982

  • 87747982 - TAPERED BEARING
  • 40mm ID x 90mm OD x 25.25mm W

5 84311242

  • 84311242 - SPACER
  • 40.45mm ID x 52mm OD x 1.65mm L

6 84299341

  • 84299341 - SLEEVE
  • 42.15mm ID x 50.5mm OD x 18.5mm L

7 84299345

  • 84299345 - ROLLER BEARING
  • 41.28mm ID x 90mm OD x 30mm L

8 84299343

  • 84299343 - WASHER
  • 41.5mm ID x 63mm OD x 2.5mm Thk

9 84318880

  • 84318880 - HOUSING

10 638-54825

  • 638-54825 - O-RING
  • 3.55mm Thk x 82.5mm ID
  • Cl 5
  • 75 Duro

11 NSS

  • NSS - NOT SOLD SEPARAT

12 84273744

  • 84273744 - LOCK BOLT
  • Hex
  • Lock
  • M12 x 1.75 x 30mm
  • Cl. 10.9

13 4966240

  • 4966240 - BEARING LOCK NUT
  • M95 x 2
  • 15T

14 561201

  • 561201 - TAPERED BEARING
  • 50mm ID x 90mm OD x 21.75mm W

15 84253805

  • 84253805 - AXLE HOUSING

16 84278737

  • 84278737 - DIFFERENTIAL

17 84268547

  • 84268547 - PIN
  • 6.99mm OD x 61.5mm L

18 NSS

  • NSS - NOT SOLD SEPARAT

19 NSS

  • NSS - NOT SOLD SEPARAT

20 84273748

  • 84273748 - BOLT
  • Hex
  • Lock
  • M12 x 1.75 x 70mm
  • Cl. 10.9

21 84273742

  • 84273742 - BOLT
  • Hex
  • Lock
  • M8 x 1.25 x 16mm
  • Cl. 10.9

22 87748532

  • 87748532 - RETAINER

23 4966244

  • 4966244 - PIN
  • 5mm OD x 15mm L

24 84299349

  • 84299349 - DIFFERENTIAL ASSY

25 NS

  • NS - NOT SERVICED
