(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

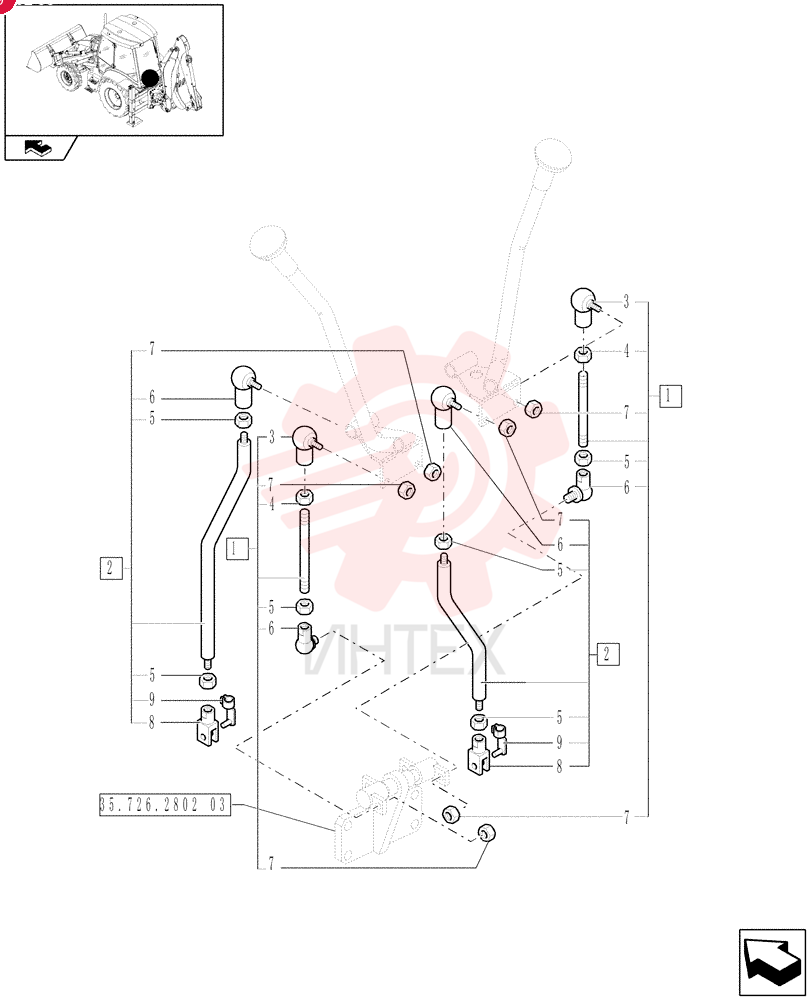

TIE-ROD,M8 x 174.5mm L

TIE-ROD,M8 x 174.5mm L

TIE-ROD,M8 x 174.5mm L

1 85804915

  • 85804915 - TIE-ROD
  • M8 x 174.5mm L

2 85806167

  • 85806167 - CLEVIS
  • 278.5mm L

3 85804376

  • 85804376 - BALL JOINT
  • M8

4 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

5 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

6 85804375

  • 85804375 - BALL JOINT
  • M8

7 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

8 10007871

  • 10007871 - YOKE
  • 8mm ID Pin Hole
  • M8 x 42mm L

9 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L
