New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

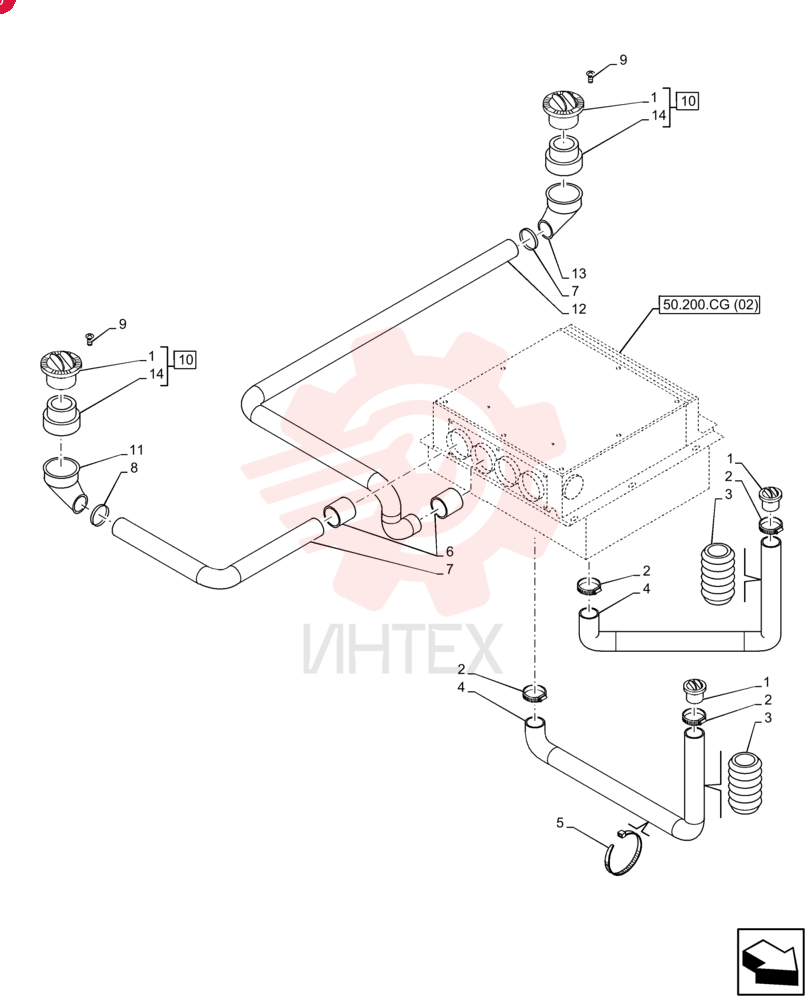

OUTLET 87362068 (1)

OUTLET 87362068 (1)

OUTLET 87362068 (1)

1 87362068

  • 87362068 - OUTLET

2 13000990

  • 13000990 - COLLAR
  • 60mm - 80mm
  • Worm Gear

3 87314769

  • 87314769 - AIR DUCT
  • 1800mm L

4 87314767

  • 87314767 - AIR DUCT
  • 1800mm L

5 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

6 85819452

  • 85819452 - HOSE
  • 47.00 mm ID x 52.00 mm

7 87319443

  • 87319443 - AIR DUCT
  • 45mm D x 700mm L

8 13000690

  • 13000690 - HOSE CLAMP
  • 32mm - 50mm
  • Worm Gear

9 15915901

  • 15915901 - SCREW
  • Flat Hd
  • M3.5 x 1.3 x 16mm

10 87362065

  • 87362065 - DIFFUSER

11 87652770

  • 87652770 - ELBOW

12 87319437

  • 87319437 - AIR DUCT
  • 45mm D x 2000mm L

13 87652764

  • 87652764 - ELBOW

14 87362071

  • 87362071 - REDUCER
