(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

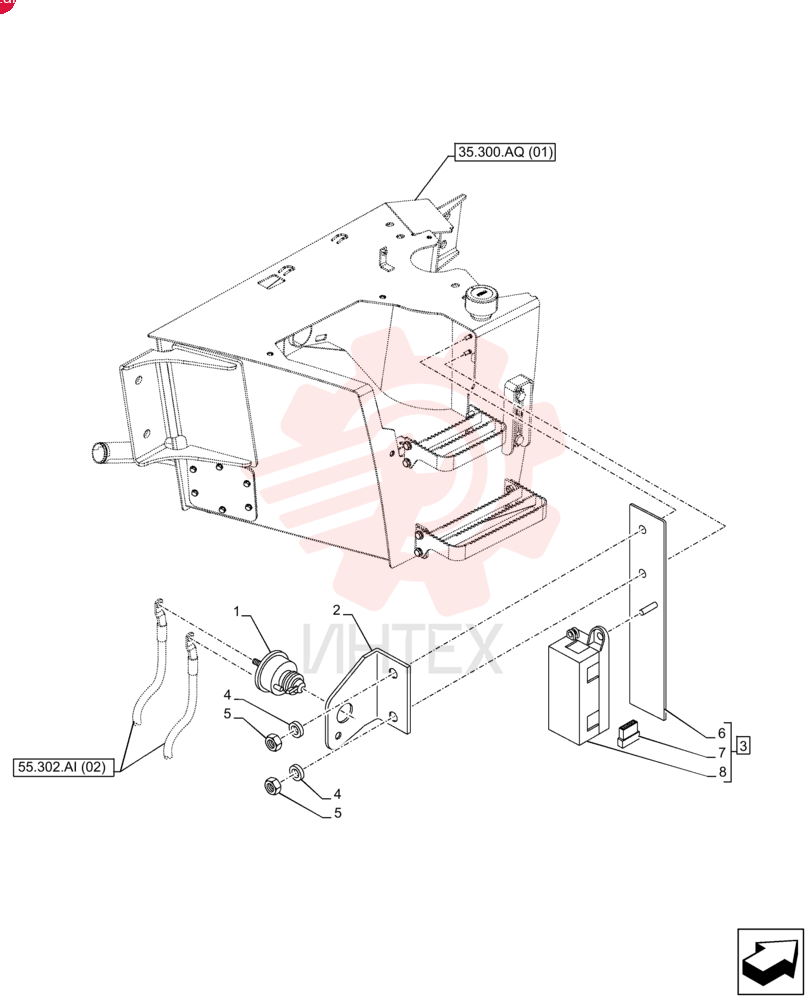

SWITCH 87409316

SWITCH 87409316

SWITCH 87409316

1 87409316

  • 87409316 - SWITCH

2 47484545

  • 47484545 - BRACKET

3 47685545

  • 47685545 - WIRE HARNESS

4 86624184

  • 86624184 - WASHER
  • 9mm ID x 16mm OD x 1.6mm Thk

5 9706690

  • 9706690 - NUT
  • M8 x 1.25
  • Cl 8

6 NSS

  • NSS - NOT SOLD SEPARAT

7 87616212

  • 87616212 - FUSE
  • 80A
  • Megaval

8 87302554

  • 87302554 - ELEC CONNECTOR
  • 6 Fuses
