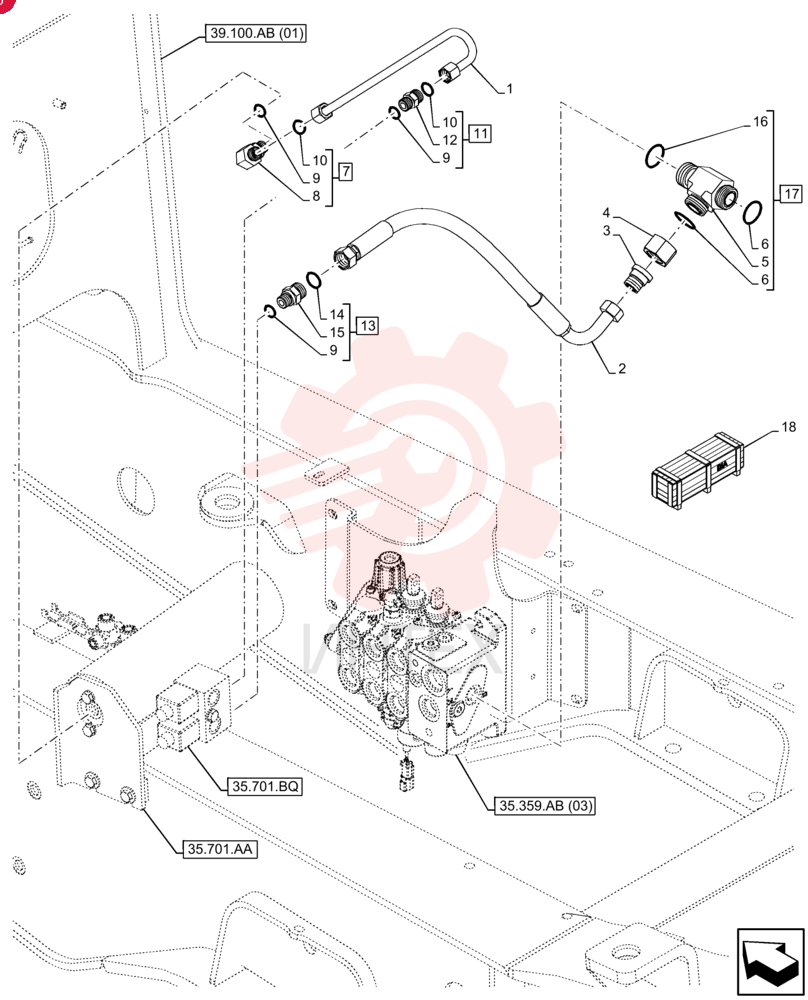

PIPE 87386551 (2)
1 87386551
- 87386551 - PIPE
2 47374808
- 47374808 - HYDRAULIC HOSE
- 15.88mm ID x 570mm L
- SAE 100R1
3 87541888
- 87541888 - REDUCER
- 1-7/16"-12 Fem ORFS x 1"-14 Male ORFS
4 86639097
- 86639097 - TUBE NUT
- 1-7/16"-12
5 NSS
- NSS - NOT SOLD SEPARAT
6 9824050
- 9824050 - O-RING
- 0.07" Thk x 0.926" ID
- -21
- Cl 6
- 90 Duro
7 83971549
- 83971549 - 90 ELBOW
- 13/16"-16 ORFS x 3/4"-16 ORB
8 NSS
- NSS - NOT SOLD SEPARAT
9 128825
- 128825 - O-RING
- 0.087" Thk x 0.644" ID
- -908
- Cl 6
- 90 Duro
10 9992298
- 9992298 - O-RING
- 0.07" Thk x 0.489" ID
- -14
- Cl 6
- 90 Duro
11 83963374
- 83963374 - FITTING
- 13/16"-16 ORFS x 3/4"-16 ORB
12 NSS
- NSS - NOT SOLD SEPARAT
13 87351379
- 87351379 - HYD CONNECTOR
14 9992069
- 9992069 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
15 NSS
- NSS - NOT SOLD SEPARAT
16 167268
- 167268 - O-RING
- 0.116" Thk x 1.171" ID
- -916
- Cl 6
- 90 Duro
17 84238740
- 84238740 - FITTING
18 47396910
- 47396910 - CONSTRUCTION DIA
19 47508817
- 47508817 - CONSTRUCTION DIA
20 47508820
- 47508820 - CONSTRUCTION DIA
