(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

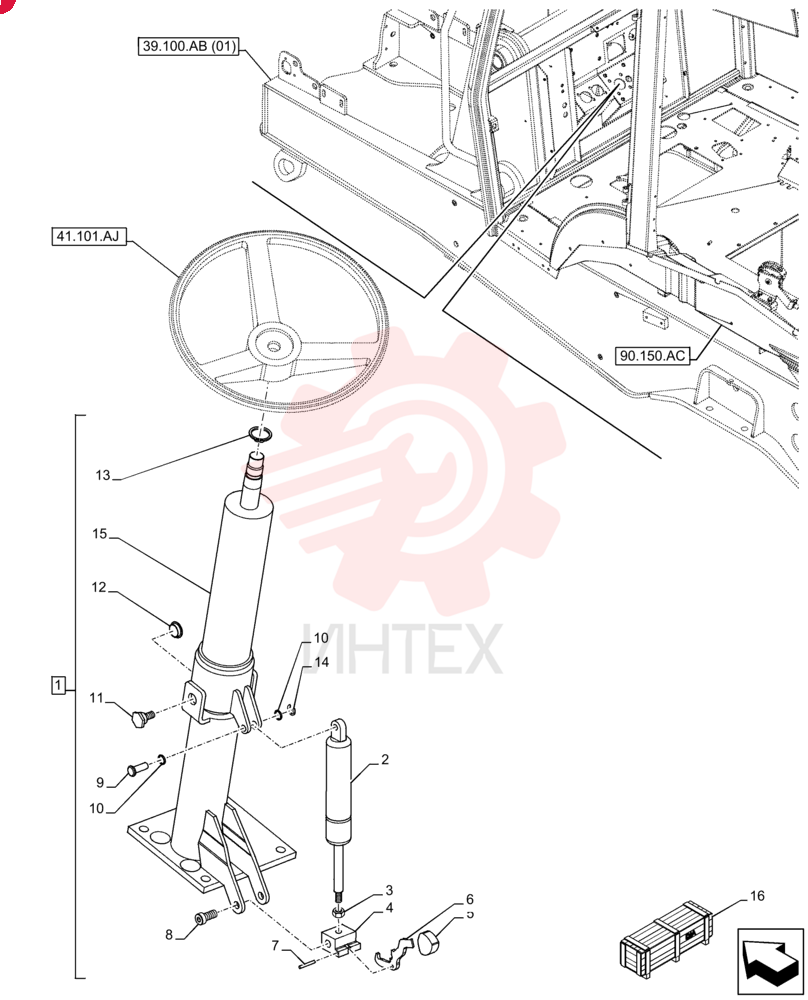

STEERING COLUMN,Telescoping 87560586 (2)

STEERING COLUMN,Telescoping 87560586 (2)

STEERING COLUMN,Telescoping 87560586 (2)

1 87560586

  • 87560586 - STEERING COLUMN
  • Telescoping

2 87560589

  • 87560589 - GAS STRUT

3 87565313

  • 87565313 - SPRING NUT

4 87328134

  • 87328134 - BLOCK

5 87328159

  • 87328159 - KNOB

6 87328165

  • 87328165 - LEVER

7 87328171

  • 87328171 - PIN
  • 3mm OD x 26mm L

8 87328138

  • 87328138 - SCREW
  • M8 x 10mm

9 87328167

  • 87328167 - PIN

10 87328137

  • 87328137 - SPACER

11 87328170

  • 87328170 - SCREW

12 87328140

  • 87328140 - BUSHING

13 87328146

  • 87328146 - LOCKING RING

14 87328166

  • 87328166 - CIRCLIP

15 NSS

  • NSS - NOT SOLD SEPARAT

16 741651019

  • 741651019 - DIA KIT
  • ADD PROD

17 741651029

  • 741651029 - DIA KIT
  • ADD PROD
