New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

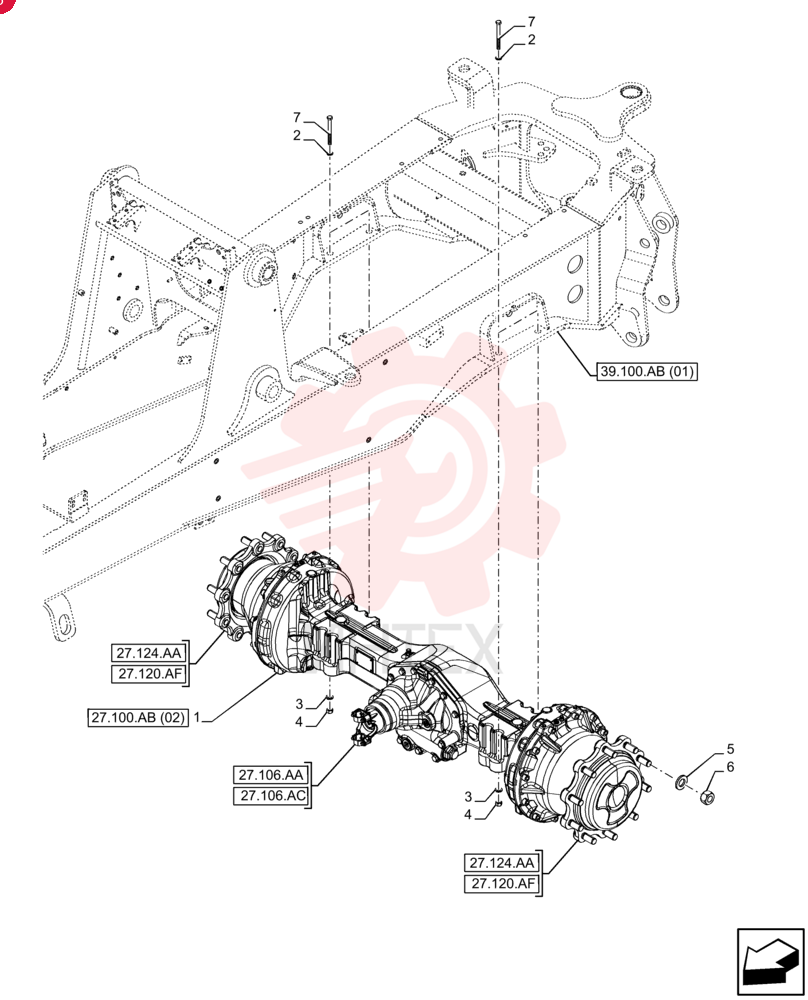

REAR AXLE 87692510 (1)

REAR AXLE 87692510 (1)

REAR AXLE 87692510 (1)

1 87692510

  • 87692510 - REAR AXLE

2 896-11020

  • 896-11020 - WASHER
  • 22mm ID x 37mm OD x 4mm Thk

3 87618533

  • 87618533 - WASHER
  • 21mm ID x 46mm OD x 6.4mm Thk

4 9847024

  • 9847024 - NUT
  • M20
  • Cl 10

5 84314334

  • 84314334 - WASHER
  • 22.8mm ID x 44.5mm OD x 5.56mm Thk

6 84314332

  • 84314332 - NUT

7 86511002

  • 86511002 - BOLT
  • Hex
  • M20 x 2.5 x 200mm
  • Cl 10.9
