(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

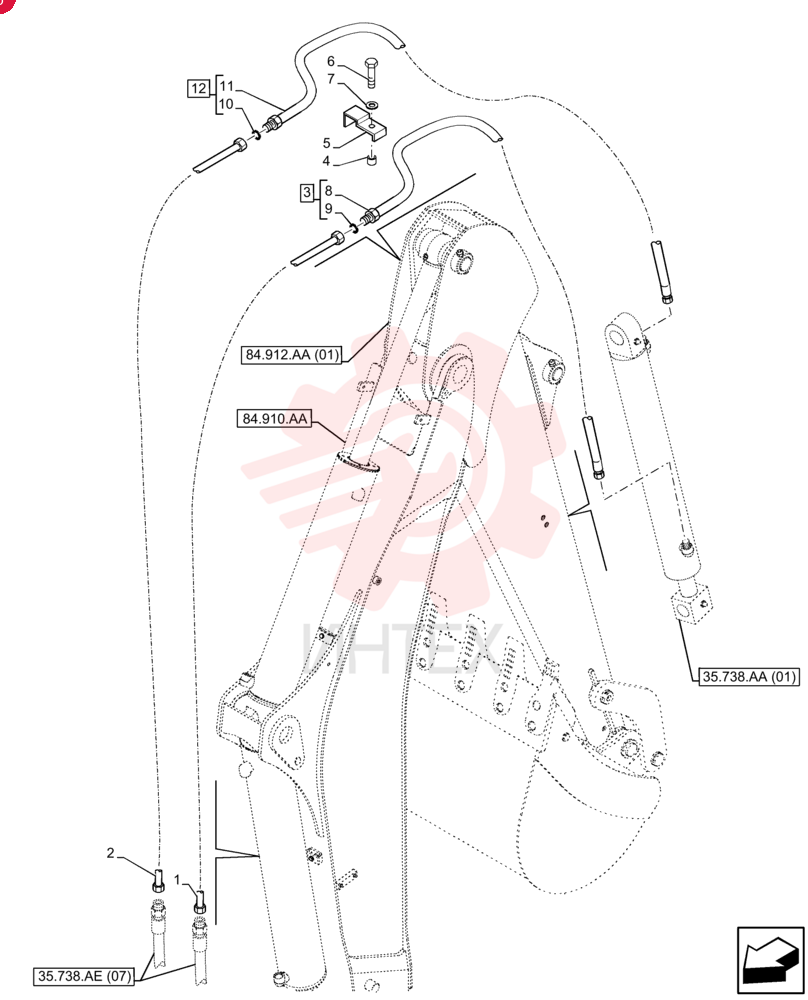

PIPE 87636636

PIPE 87636636

PIPE 87636636

1 87636636

  • 87636636 - PIPE

2 87636637

  • 87636637 - PIPE

3 87684507

  • 87684507 - FLEXIBLE HOSE
  • 12.7mm ID x 2170mm L

4 85802901

  • 85802901 - SPACER
  • 10mm ID x 16mm OD x 17.5mm L

5 85802909

  • 85802909 - CLAMP
  • 70mm L x 30mm W x 5mm Thk

6 16044221

  • 16044221 - SCREW
  • Hex
  • M8 x 1.25 x 50mm
  • Cl 8.8

7 11193979

  • 11193979 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

8 NSS

  • NSS - NOT SOLD SEPARAT

9 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro

10 9991976

  • 9991976 - O-RING
  • 0.07" Thk x 0.739" ID
  • -18
  • Cl 6
  • 90 Duro

11 NSS

  • NSS - NOT SOLD SEPARAT

12 87684509

  • 87684509 - FLEXIBLE HOSE
  • 15.9mm ID x 1300mm L
