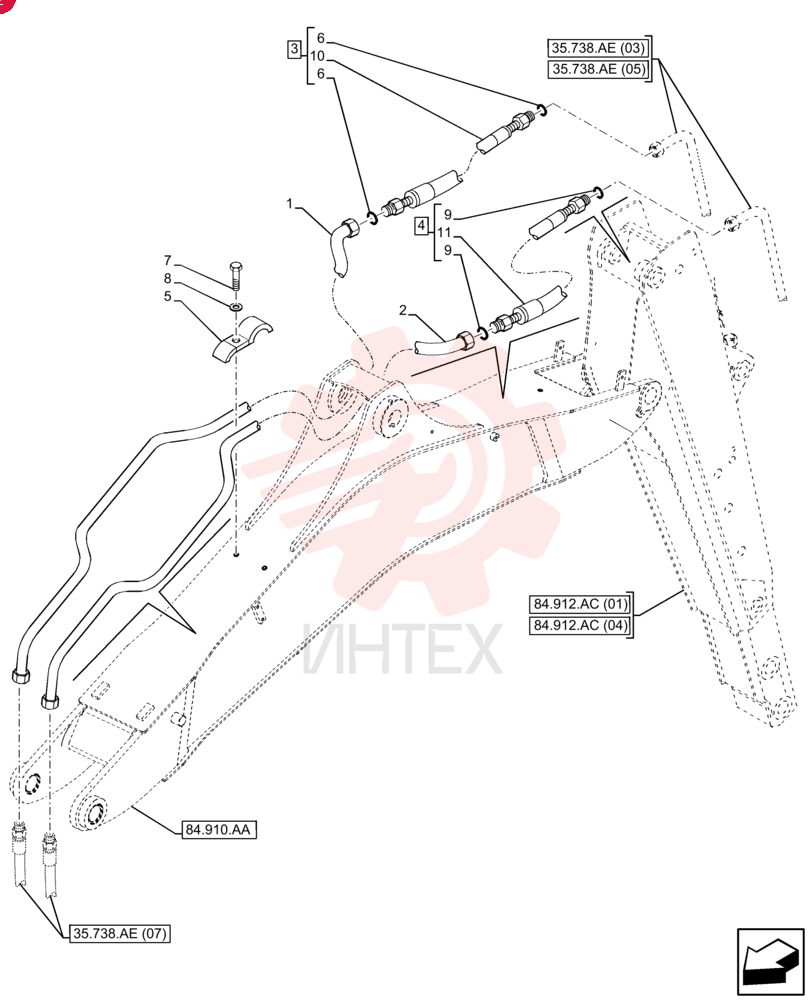

PRESSURE PIPE 87614629
1 87614629
- 87614629 - PRESSURE PIPE
2 87614627
- 87614627 - PRESSURE PIPE
3 85817107
- 85817107 - FLEXIBLE HOSE
- 12.7mm ID x 1090mm L
4 85817106
- 85817106 - FLEXIBLE HOSE
- 15.88mm ID x 1100mm L
5 87610539
- 87610539 - PIPE CLAMP
- 20mm ID
6 9992069
- 9992069 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
7 16044021
- 16044021 - SCREW
- Hex
- M8 x 1.25 x 40mm
- Cl 8.8
8 11193879
- 11193879 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
9 9991976
- 9991976 - O-RING
- 0.07" Thk x 0.739" ID
- -18
- Cl 6
- 90 Duro
10 NSS
- NSS - NOT SOLD SEPARAT
11 NSS
- NSS - NOT SOLD SEPARAT
