(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

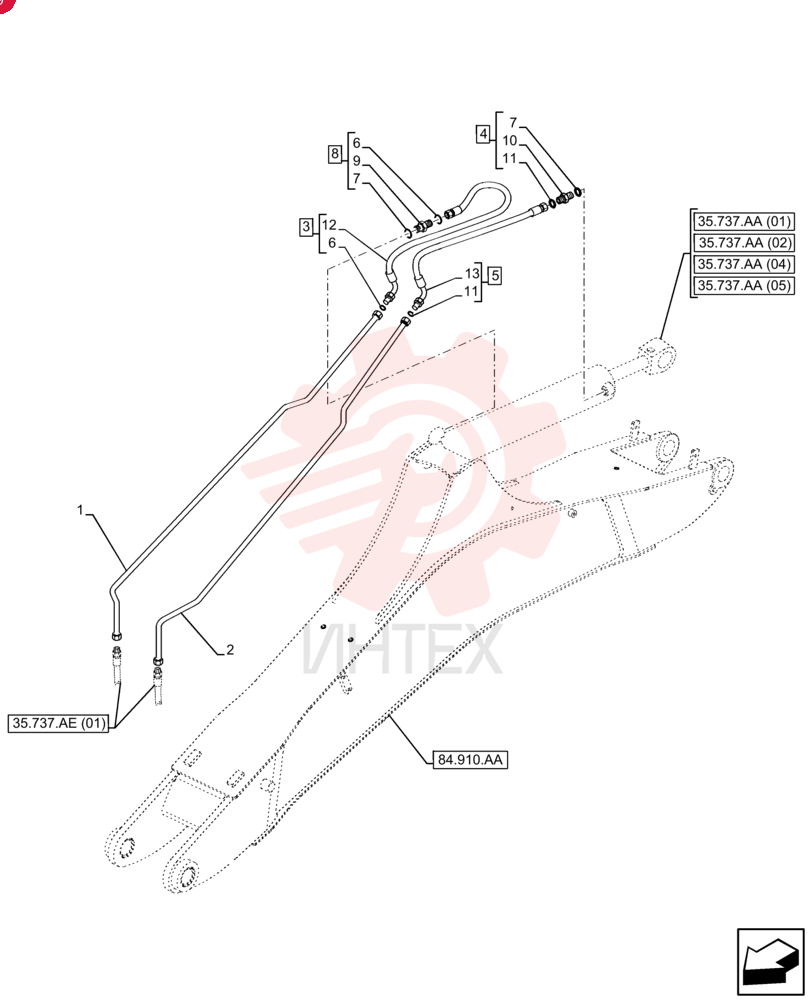

PIPE 87614628

PIPE 87614628

PIPE 87614628

1 87614628

  • 87614628 - PIPE

2 87614614

  • 87614614 - PIPE

3 87683904

  • 87683904 - FLEXIBLE HOSE
  • 15.9mm ID x 580mm L

4 83962539

  • 83962539 - HYD CONNECTOR
  • 1" - 14 ORFS x 1-1/16 - 12 ORB

5 87683905

  • 87683905 - FLEXIBLE HOSE
  • 12.7mm ID x 550mm L

6 9991976

  • 9991976 - O-RING
  • 0.07" Thk x 0.739" ID
  • -18
  • Cl 6
  • 90 Duro

7 167266

  • 167266 - O-RING
  • 0.116" Thk x 0.924" ID
  • -912
  • Cl 6
  • 90 Duro

8 83962538

  • 83962538 - FITTING
  • 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

9 NSS

  • NSS - NOT SOLD SEPARAT

10 NSS

  • NSS - NOT SOLD SEPARAT

11 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro

12 NSS

  • NSS - NOT SOLD SEPARAT

13 NSS

  • NSS - NOT SOLD SEPARAT
