(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

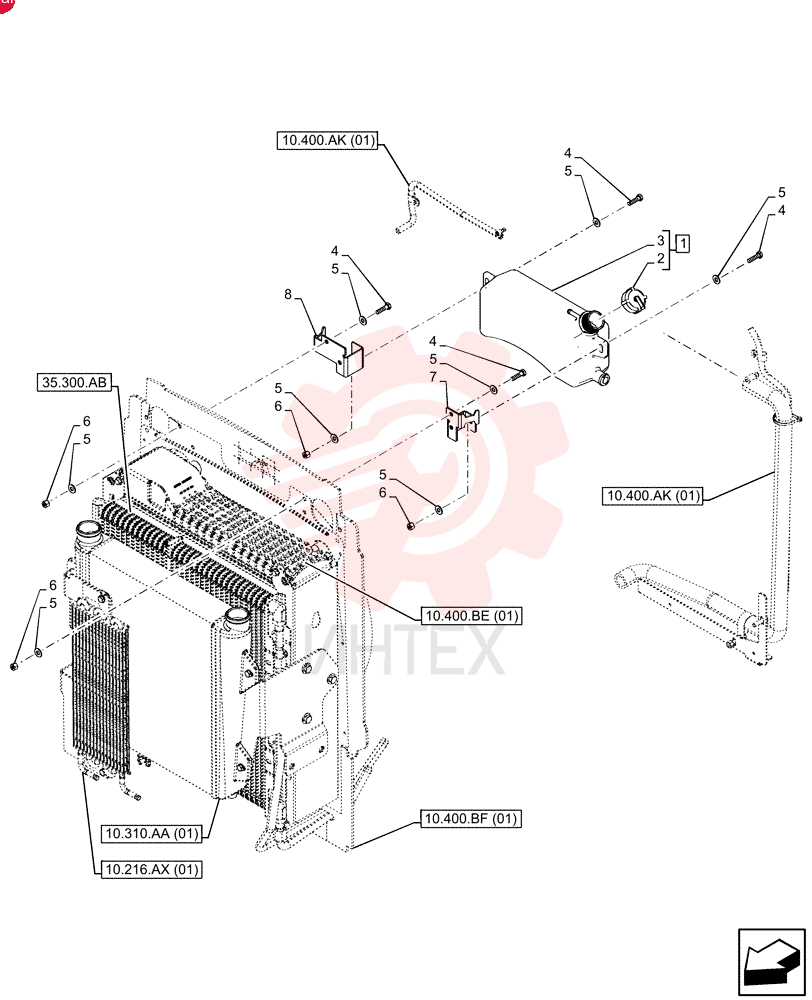

RESERVOIR, COOLANT E,3L 87674844 (3)

RESERVOIR, COOLANT E,3L 87674844 (3)

RESERVOIR, COOLANT E,3L 87674844 (3)

1 87674844

  • 87674844 - RESERVOIR
  • COOLANT E
  • 3L

2 85803019

  • 85803019 - RADIATOR CAP

3 NSS

  • NSS - NOT SOLD SEPARAT

4 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

5 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk

6 412250

  • 412250 - NUT
  • M8 x 1.25
  • Cl 8

7 47624782

  • 47624782 - BRACKET

8 47624783

  • 47624783 - BRACKET
