(FR120.2) - WHEEL LOADER (N.A. VERSION) (9/98-)
/

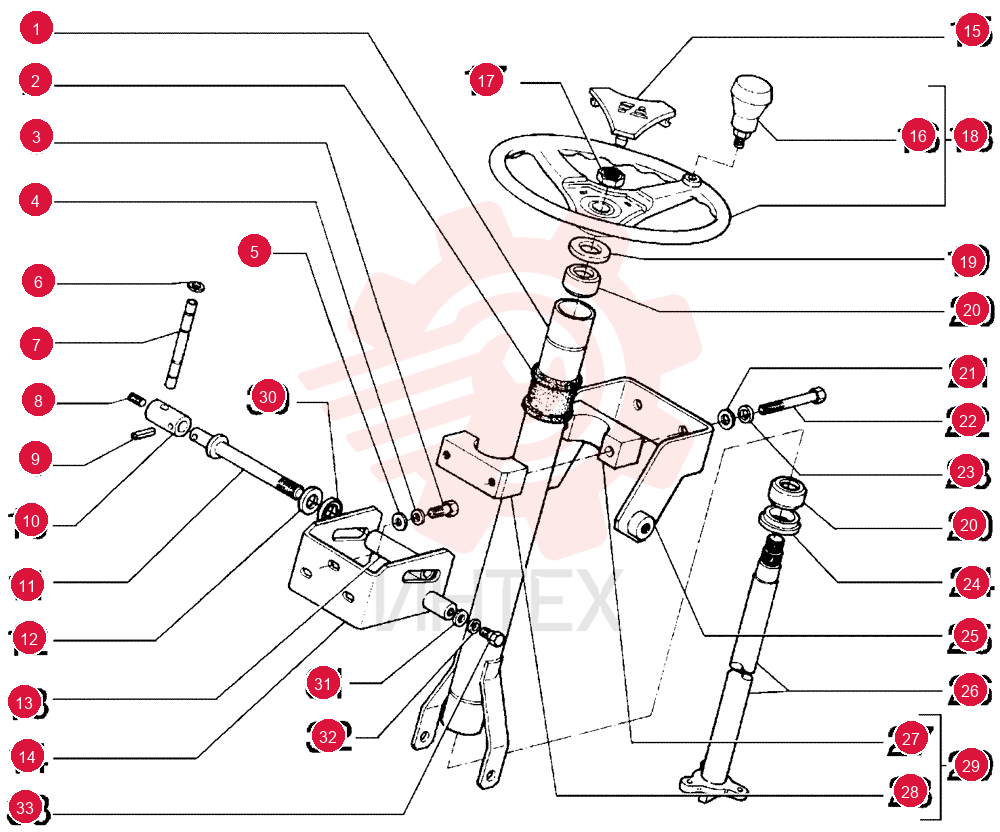

STEERING COLUMN 75239533

STEERING COLUMN 75239533

STEERING COLUMN 75239533

1 75239533

  • 75239533 - STEERING COLUMN

2 75240839

  • 75240839 - BUSHING

3 14306431

  • 14306431 - HEX SOC SCREW
  • M8 x 1.25 x 25mm
  • Cl 10.9
  • Full Thd

4 10615679

  • 10615679 - LOCK WASHER
  • Ext Tooth
  • M8

5 10519621

  • 10519621 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

6 70935211

  • 70935211 - RING

7 73121497

  • 73121497 - SHAFT

8 73129094

  • 73129094 - SCREW

9 14162271

  • 14162271 - ROLL PIN

10 75240831

  • 75240831 - COUPLING

11 75240807

  • 75240807 - SHAFT

12 73121925

  • 73121925 - THRUST WASHER
  • 19.05mm ID x 31.75mm OD x 0.81mm Thk

13 75240819

  • 75240819 - SPACER

14 75239660

  • 75239660 - SUPPORT

15 79101928

  • 79101928 - COVER

16 79101929

  • 79101929 - KNOB

17 79107257

  • 79107257 - STEERING WHEEL

18 79110547

  • 79110547 - SPACER

19 79097232

  • 79097232 - BUSHING

20 14496621

  • 14496621 - WASHER
  • 10.5mm ID x 21mm OD x 2mm Thk

21 11107231

  • 11107231 - SCREW
  • Hex
  • M10 x 50mm
  • Cl 10.9

22 10615779

  • 10615779 - LOCK WASHER
  • Ext Tooth
  • M10

23 79105313

  • 79105313 - SPACER

24 75239290

  • 75239290 - SUPPORT

25 79101744

  • 79101744 - SHAFT

26 75240811

  • 75240811 - CLAMP

27 75240812

  • 75240812 - CLAMP

28 75240810

  • 75240810 - CLAMP

29 CMI70927282

  • CMI70927282 - BEARING ASSY

30 10615679

  • 10615679 - LOCK WASHER
  • Ext Tooth
  • M8

31 12645031

  • 12645031 - WASHER
  • 8.45mm ID x 21mm OD x 3mm Thk

32 16043431

  • 16043431 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 10.9
  • Full Thd

33 10726621

  • 10726621 - THIN NUT
  • Thin
  • M18 x 1.5
  • Cl 05
