New Holland Construction
/
(FR120.2) - WHEEL LOADER (N.A. VERSION) (9/98-)
/

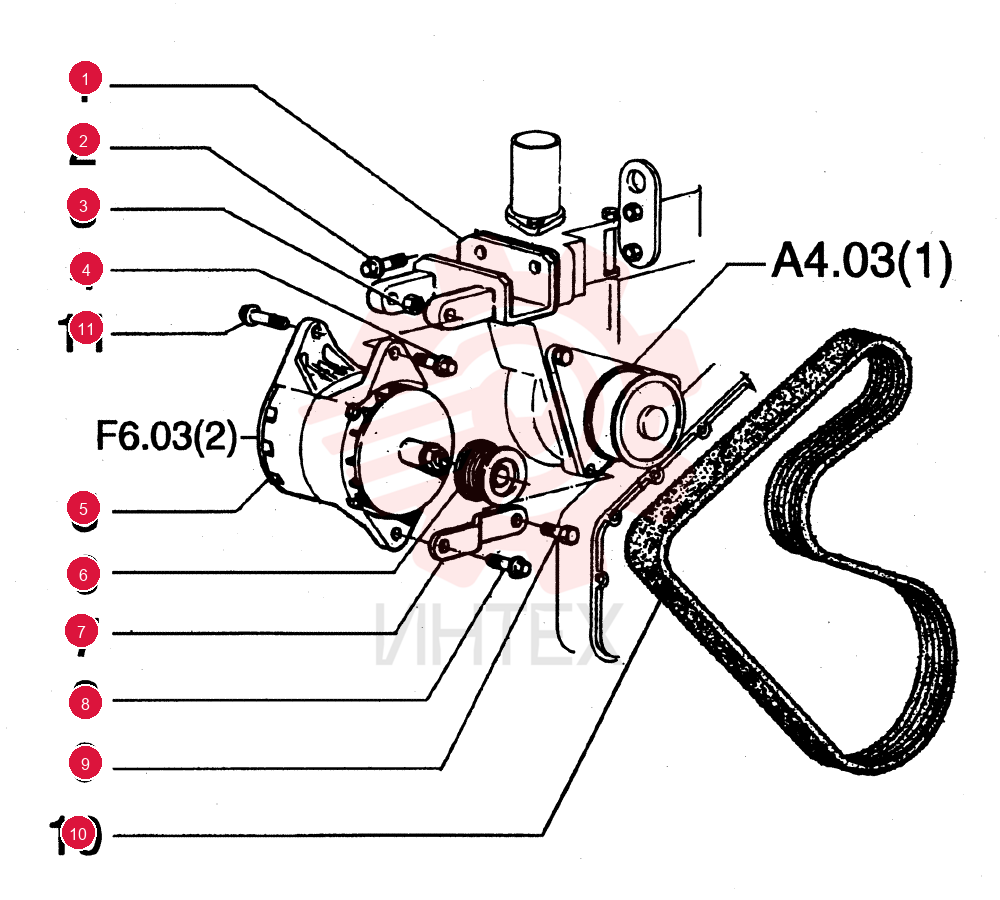

SUPPORT 75250358

SUPPORT 75250358

SUPPORT 75250358

1 75250358

  • 75250358 - SUPPORT

2 75208388

  • 75208388 - SCREW

3 76021836

  • 76021836 - NUT

4 11113231

  • 11113231 - BOLT
  • Hex
  • M12 x 50mm
  • Cl 10.9

5 75241505

  • 75241505 - ALTERNATOR

6 197231A1R

  • 197231A1R - REMAN-ALTERNATOR

7 197231A1C

  • 197231A1C - CORE-ALTERNATOR

8 75286360

  • 75286360 - PULLEY

9 75250363

  • 75250363 - GRAB STRAP

10 75286109

  • 75286109 - SCREW

11 3900678

  • 3900678 - SCREW
  • M8 x 1.25 x 40mm

12 75204979

  • 75204979 - BELT

13 11113531

  • 11113531 - SCREW
  • Hex
  • M12 x 65mm
  • Cl 10.9
