New Holland Construction
/
(FR120.2) - WHEEL LOADER (N.A. VERSION) (9/98-)
/

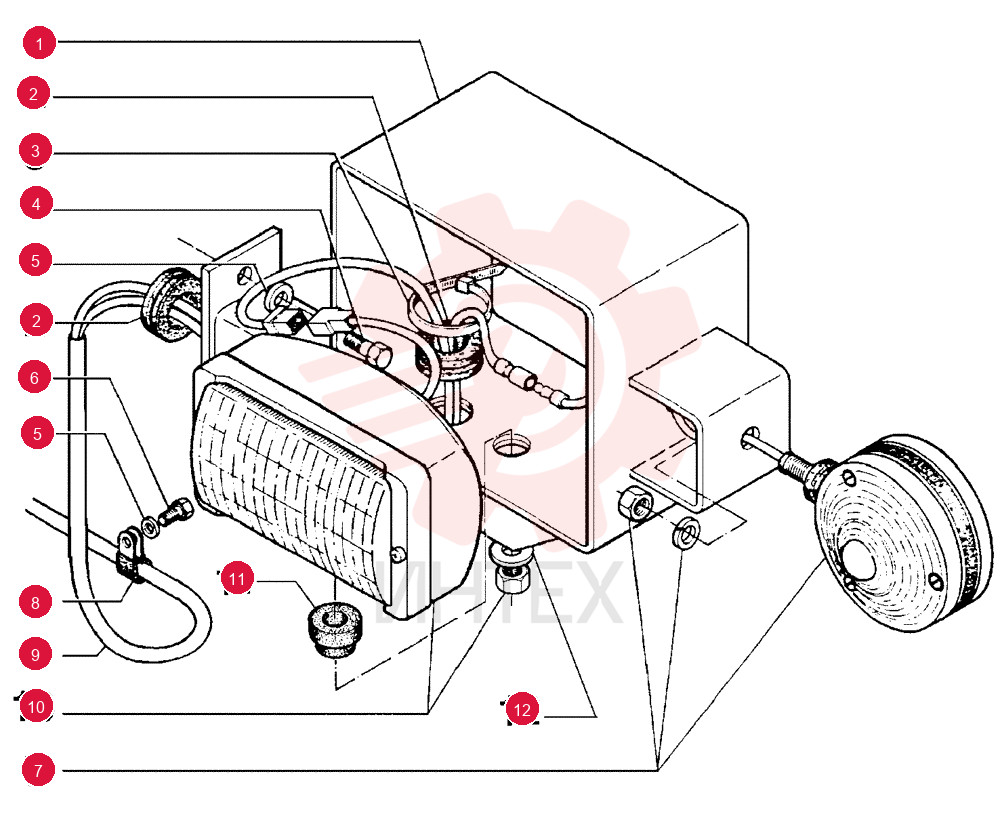

SUPPORT 75246774

SUPPORT 75246774

SUPPORT 75246774

1 75246774

  • 75246774 - SUPPORT

2 75246773

  • 75246773 - SUPPORT

3 76021800

  • 76021800 - RING

4 75201641

  • 75201641 - CLAMP

5 16043431

  • 16043431 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 10.9
  • Full Thd

6 14496531

  • 14496531 - WASHER
  • 8.4mm ID x 17mm OD x 1.6mm Thk

7 16043131

  • 16043131 - BOLT
  • Hex
  • M8 x 1.25 x 14mm
  • Cl 10.9
  • Full Thd

8 75247437

  • 75247437 - TURN SIGNAL INDICATOR

9 70639314

  • 70639314 - CLAMP
  • 9.53mm ID
  • 10.32mm Bolt Hole
  • P Type

10 75241299

  • 75241299 - CABLE

11 75247405

  • 75247405 - LAMP

12 79089658

  • 79089658 - PAD

13 70925311

  • 70925311 - WASHER
