(FR120.2) - WHEEL LOADER (N.A. VERSION) (9/98-)
/

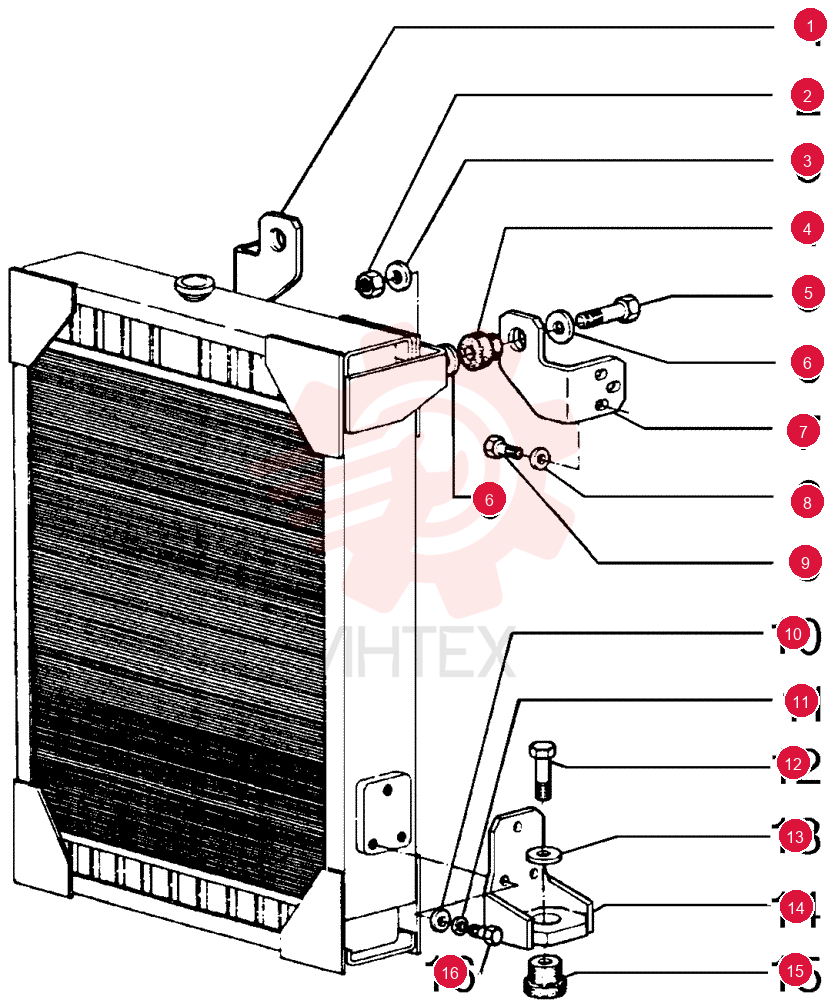

SUPPORT 75240508

SUPPORT 75240508

SUPPORT 75240508

1 75240508

  • 75240508 - SUPPORT

2 16101521

  • 16101521 - NUT
  • M12 x 1.25
  • Cl 10

3 10615879

  • 10615879 - LOCK WASHER
  • Serr
  • M12

4 73125056

  • 73125056 - SHOCK ABSORBER

5 15541131

  • 15541131 - SCREW
  • Hex
  • M12 x 1.25 x 65mm
  • Cl 10.9

6 75223895

  • 75223895 - WASHER
  • 12.5mm ID x 51mm OD x 3mm Thk

7 75240506

  • 75240506 - SUPPORT

8 14496731

  • 14496731 - WASHER
  • M12 x 24 x 2.5 Thk

9 11112131

  • 11112131 - SCREW
  • Hex
  • M12 x 20mm
  • Cl 10.9
  • Full Thd

10 14496731

  • 14496731 - WASHER
  • M12 x 24 x 2.5 Thk

11 10516871

  • 10516871 - LOCK WASHER
  • 10.2mm ID x 17.7mm OD x 2.5mm Thk

12 15846437

  • 15846437 - BOLT
  • Hex
  • M16 x 1.5 x 95mm
  • Cl 10.9

13 70926194

  • 70926194 - WASHER

14 75240464

  • 75240464 - SUPPORT

15 76022229

  • 76022229 - INSULATOR BLOCK

16 11106031

  • 11106031 - BOLT
  • Hex
  • M10 x 1.5 x 20mm
  • Cl 10.9
