(FR120.2) - WHEEL LOADER (N.A. VERSION) (9/98-)
/

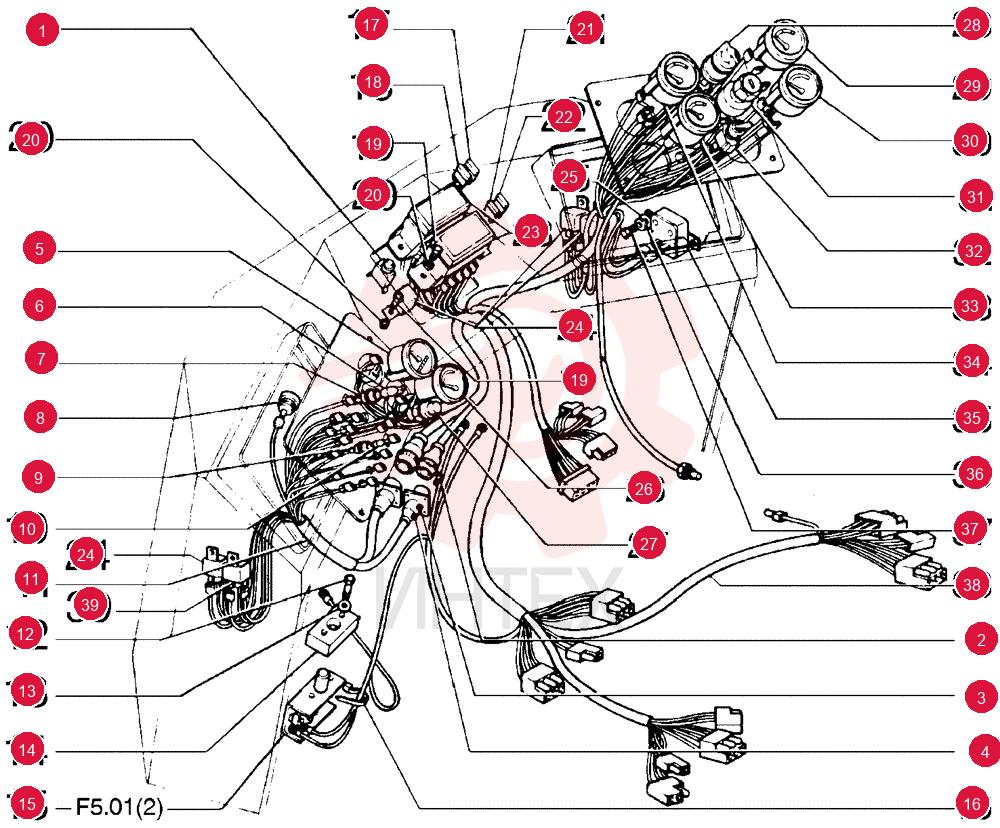

SWITCH 75240495

SWITCH 75240495

SWITCH 75240495

1 75240495

  • 75240495 - SWITCH

2 10374801

  • 10374801 - SCREW
  • Pan Hd
  • M4 x 10mm

3 11195379

  • 11195379 - WASHER

4 10794021

  • 10794021 - NUT
  • M4
  • Cl 10

5 75220416

  • 75220416 - HOURMETER

6 14144290

  • 14144290 - BULB
  • W5W
  • 24V
  • 5W

7 7074021

  • 7074021 - POWER SOCKET

8 75241340

  • 75241340 - HORN

9 75241301

  • 75241301 - POWER SOCKET

10 14143890

  • 14143890 - BULB

11 75241298

  • 75241298 - CABLE

12 10903431

  • 10903431 - BOLT
  • Hex
  • M6 x 45mm
  • Cl 10.9

13 10519401

  • 10519401 - WASHER
  • 6.4mm ID x 11.95mm OD x 1.6mm Thk

14 75241354

  • 75241354 - SPACER

15 75223318

  • 75223318 - SWITCH

16 75201641

  • 75201641 - CLAMP

17 87717079

  • 87717079 - FUSE

18 86545886

  • 86545886 - FUSE

19 10977821

  • 10977821 - BOLT
  • M5 x 19.65mm OAL
  • Cl 8.8

20 10519301

  • 10519301 - WASHER
  • 5.3mm ID x 9.55mm OD x 1mm Thk

21 84090658

  • 84090658 - FUSE

22 9811773

  • 9811773 - FUSE
  • 10A
  • Micro
  • Red

23 79078595

  • 79078595 - FUSE HOLDER

24 75245079

  • 75245079 - SWITCH

25 14496431

  • 14496431 - WASHER
  • 6.4mm ID x 12.5mm OD x 1.6mm Thk

26 75239182

  • 75239182 - LEVEL GAUGE

27 75217221

  • 75217221 - SWITCH

28 73057960

  • 73057960 - LIGHT SWITCH

29 75236105

  • 75236105 - THERMOMETER

30 75236103

  • 75236103 - OIL PRESSURE GAUGE

31 73075753

  • 73075753 - IGNITION SWITCH

32 73125891

  • 73125891 - ASSEMBLY

33 75220412

  • 75220412 - OIL PRESSURE GAUGE

34 75236102

  • 75236102 - THERMOMETER

35 70663928

  • 70663928 - FLASHER UNIT

36 10615479

  • 10615479 - LOCK WASHER
  • 6.4mm ID x 11mm OD x 0.7mm Thk

37 10902131

  • 10902131 - SCREW
  • Hex
  • M6 x 14mm
  • Cl 10.9
  • Full Thd

38 75241297

  • 75241297 - CABLE

39 79083552

  • 79083552 - TIMER
