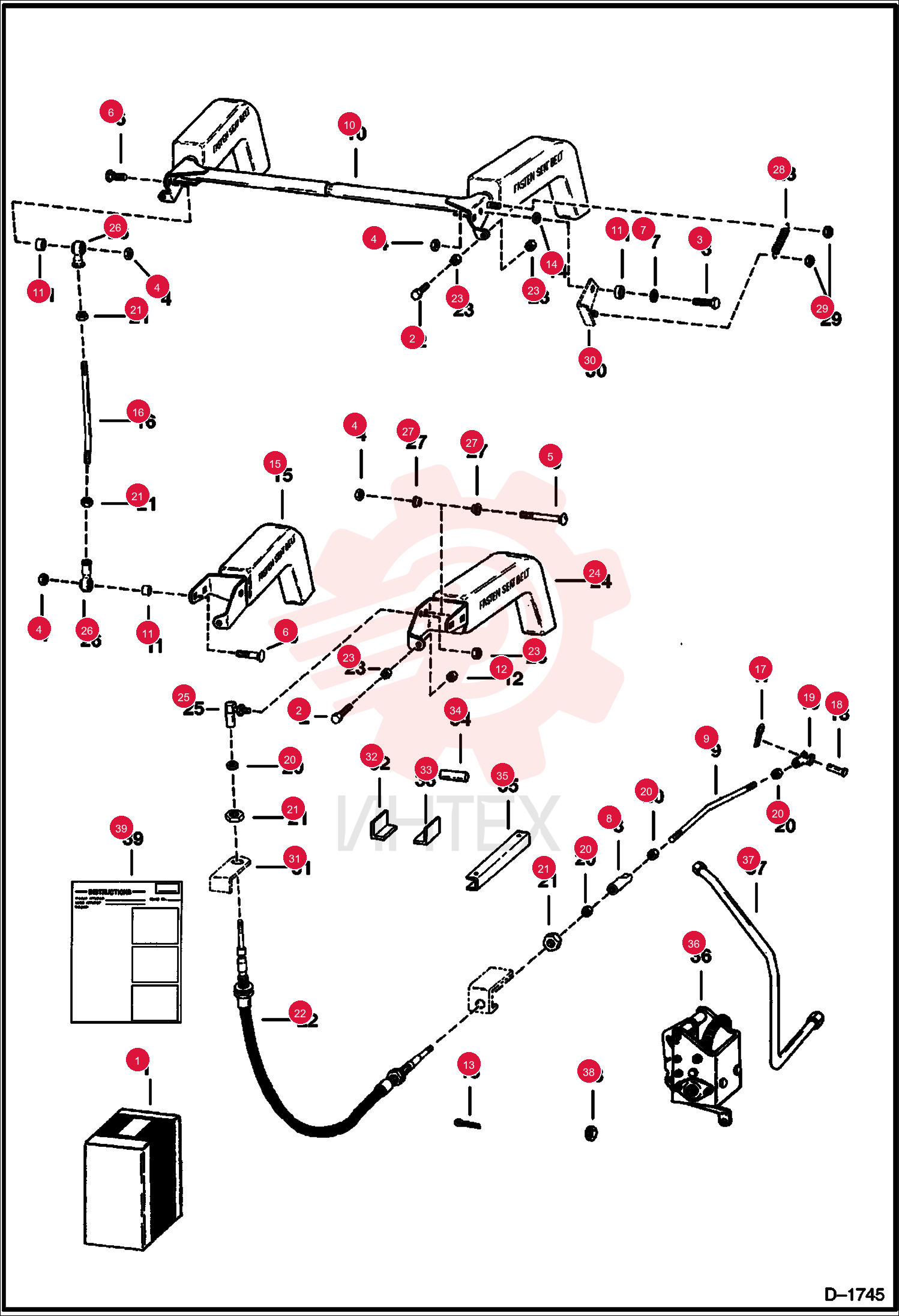

KIT, SEAT 6584586 (1)

KIT, SEAT 6584586 (1)

KIT, SEAT 6584586 (1)

1 6584586

  • 6584586 - KIT
  • SEAT
  • Ref. 2-39

2 17C620

  • 17C620 - BOLT

3 17C624

  • 17C624 - BOLT 5

4 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

5 7C672

  • 7C672 - BOLT

6 37C624

  • 37C624 - BOLT
  • Was 7C624

7 25E18

  • 25E18 - WASHER FLAT PLAIN

8 6584439

  • 6584439 - COUPLER

9 6584438

  • 6584438 - ROD

10 6584446

  • 6584446 - SEAT BAR
  • Upper

11 6584582

  • 6584582 - BUSHING

12 86D4

  • 86D4 - NUT

13 1F312

  • 1F312 - PIN

14 6584435

  • 6584435 - SPACER

15 6584448

  • 6584448 - SEAT BAR
  • L.H.

16 6584436

  • 6584436 - ROD

17 1F208

  • 1F208 - PIN

18 4F4051

  • 4F4051 - PIN

19 2J4200

  • 2J4200 - CLEVIS

20 8D4

  • 8D4 - NUT

21 8D6

  • 8D6 - NUT HEX JAM

22 6584437

  • 6584437 - CABLE

23 7D6

  • 7D6 - NUT

24 6584447

  • 6584447 - SEAT BAR
  • R.H.

25 6554858

  • 6554858 - BALL JOINT

26 6512954

  • 6512954 - ROD END
  • R.H. threads

27 6631646

  • 6631646 - BUSHING

28 6584584

  • 6584584 - SPRING

29 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

30 6584578

  • 6584578 - BRACKET
  • R.H.

31 6584579

  • 6584579 - BRACKET
  • L.H.

32 6584431

  • 6584431 - MOUNT
  • BRACKET

33 6584432

  • 6584432 - BRACKET
  • L.H.

34 6584433

  • 6584433 - BRACKET
  • R.H.

35 6585445

  • 6585445 - TUBE

36 6584997

  • 6584997 - CHANNEL

37 6584601

  • 6584601 - MECH CTR
  • centering

38 6584434

  • 6584434 - TUBE

39 57D6

  • 57D6 - NUT HEX FLNG GR8
