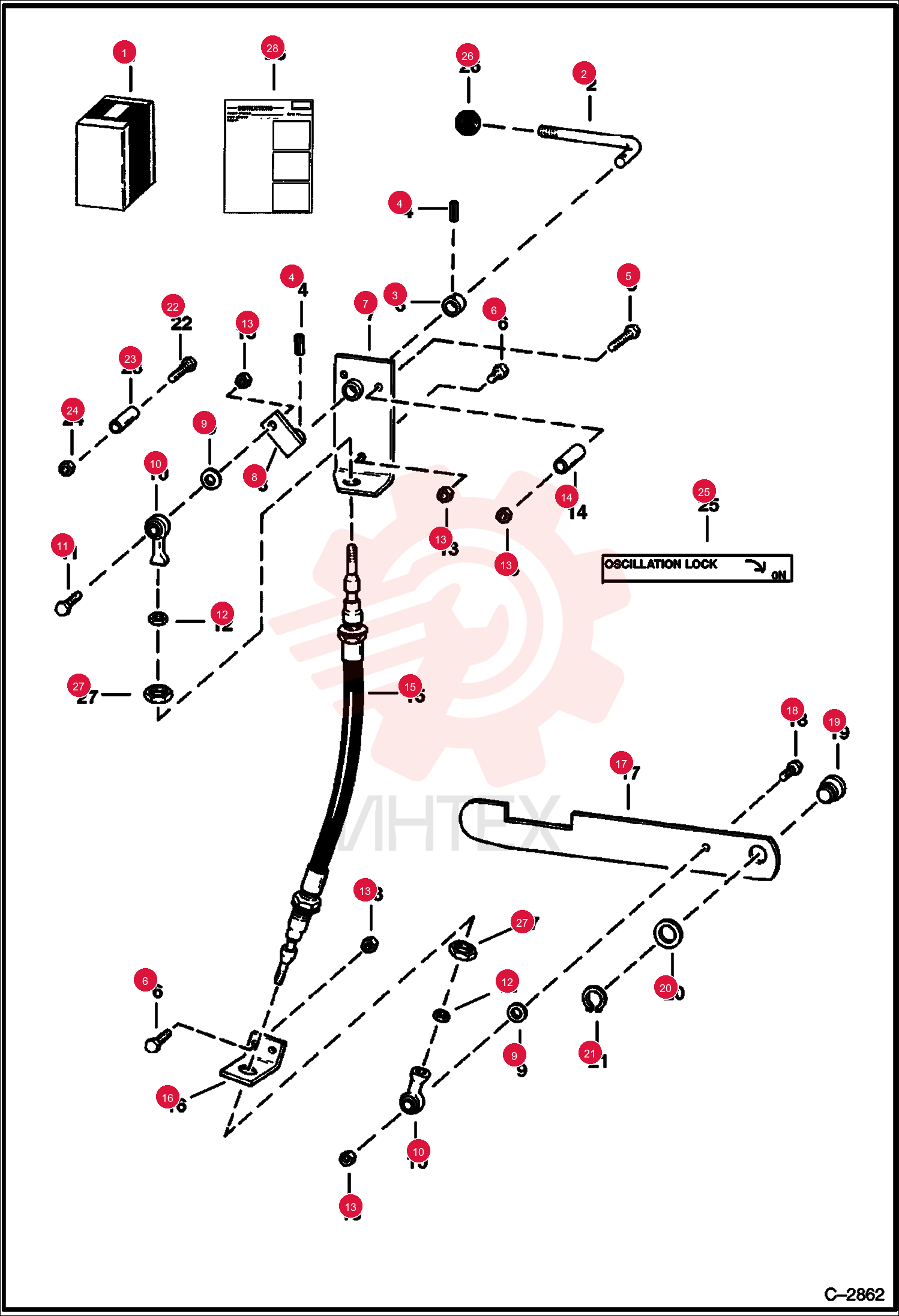

OSC. LOCK 6584419 (2)

OSC. LOCK 6584419 (2)

OSC. LOCK 6584419 (2)

1 6584419

  • 6584419 - OSC. LOCK
  • Ref. 2-28

2 6584454

  • 6584454 - LEVER

3 6584464

  • 6584464 - COLLAR

4 14J1514

  • 14J1514 - PIN

5 17C536

  • 17C536 - BOLT

6 17C512

  • 17C512 - BOLT 5

7 6584463

  • 6584463 - MOUNT ASSEMBLY

8 6584461

  • 6584461 - PIVOT ASSEMBLY

9 25E15

  • 25E15 - WASHER FLAT PLAIN

10 1300247

  • 1300247 - ROD END

11 17C516

  • 17C516 - BOLT

12 8D5

  • 8D5 - NUT

13 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

14 6584460

  • 6584460 - SPACER

15 6584456

  • 6584456 - MOUNT

16 6584459

  • 6584459 - BAR
  • lockout

17 17C524

  • 17C524 - BOLT

18 6584458

  • 6584458 - MOUNT

19 6505046

  • 6505046 - WASHER

20 22J16

  • 22J16 - SNAP RING
  • Was 1320431

21 17C644

  • 17C644 - BOLT

22 6504392

  • 6504392 - BUSHING

23 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

24 6584888

  • 6584888 - DECAL

25 6515888

  • 6515888 - KNOB

26 8D12

  • 8D12 - NUT
