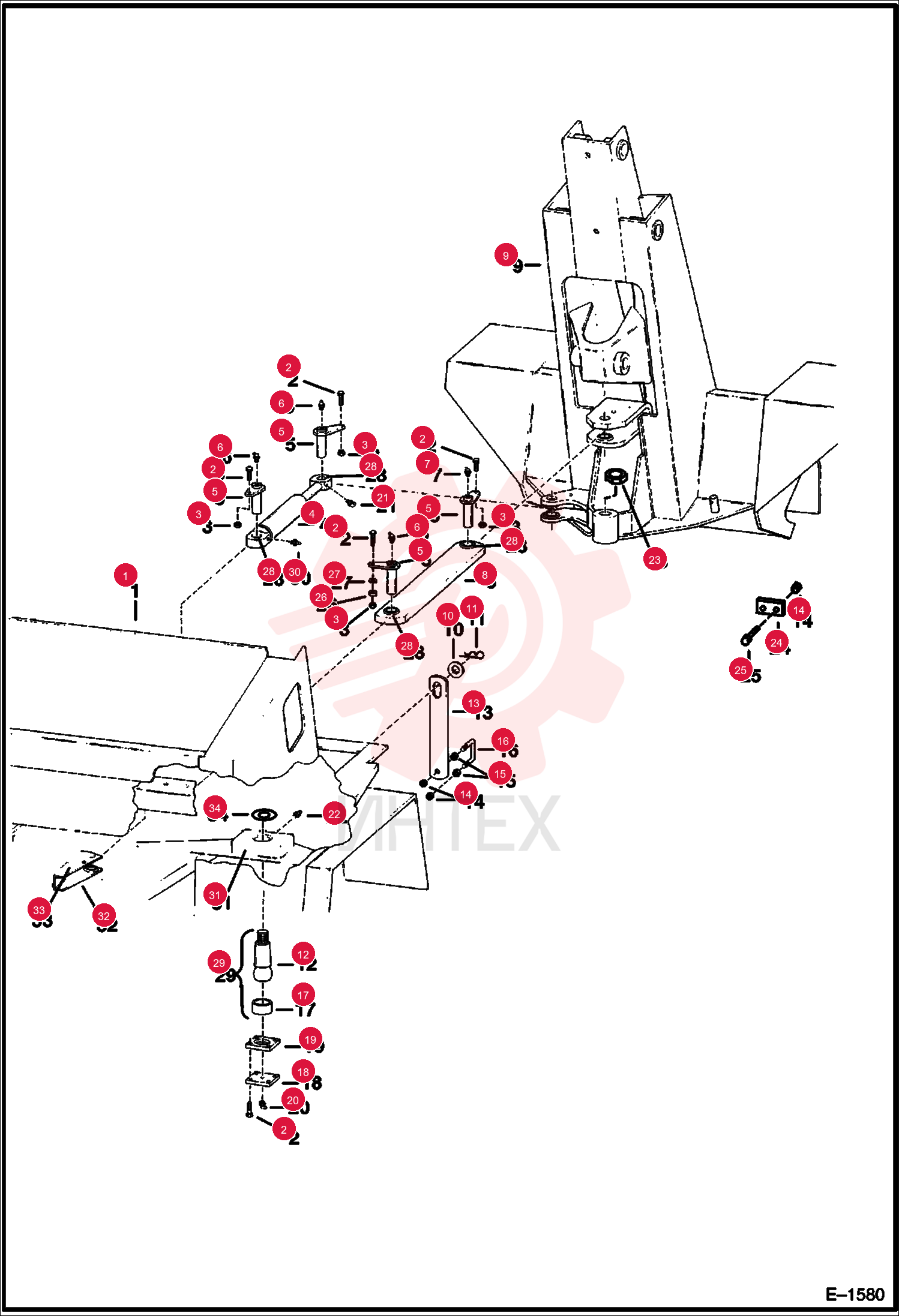

FRAME REA 6584852
1 6584852
- 6584852 - FRAME REA
- rear
2 17C624
- 17C624 - BOLT 5
3 85D6
- 85D6 - NUT PRETRQ HEX LOCK
4 6538261
- 6538261 - PIN ASY.
- Was 6584560
5 12H15
- 12H15 - FTG GREASE 90
- Was 12H000025B
6 10H25
- 10H25 - FTG GREASE STRAIGHT
- Was 10H000035B
7 6584847
- 6584847 - LINK
- Includes qty. 2 of Ref. 28
8 25E31
- 25E31 - WASHER
9 1318566
- 1318566 - PIN
10 6584780
- 6584780 - BAR
11 85D8
- 85D8 - NUT PRETRQ HEX LOCK
12 7D8
- 7D8 - NUT 5
13 6584779
- 6584779 - U BOLT
14 6585292
- 6585292 - COVER MT
15 6585293
- 6585293 - MOUNT
16 12H15
- 12H15 - FTG GREASE 90
17 16F2
- 16F2 - PLUG
- hex socket
18 10H25
- 10H25 - FTG GREASE STRAIGHT
19 85D20
- 85D20 - NUT
20 6584781
- 6584781 - STOP
- boom stop
21 17C832
- 17C832 - BOLT
22 616783
- 616783 - WASHER
- Was 6591440
23 25E18
- 25E18 - WASHER FLAT PLAIN
24 669928
- 669928 - BEARING
- self-aligning
25 33G404
- 33G404 - SET SCRW5
- socket
26 6561516
- 6561516 - PIV MOUNT
- pivot
27 6584843
- 6584843 - BRACKET
28 6584845
- 6584845 - BRACKET
29 6588949
- 6588949 - SEAL
- Ball joint
