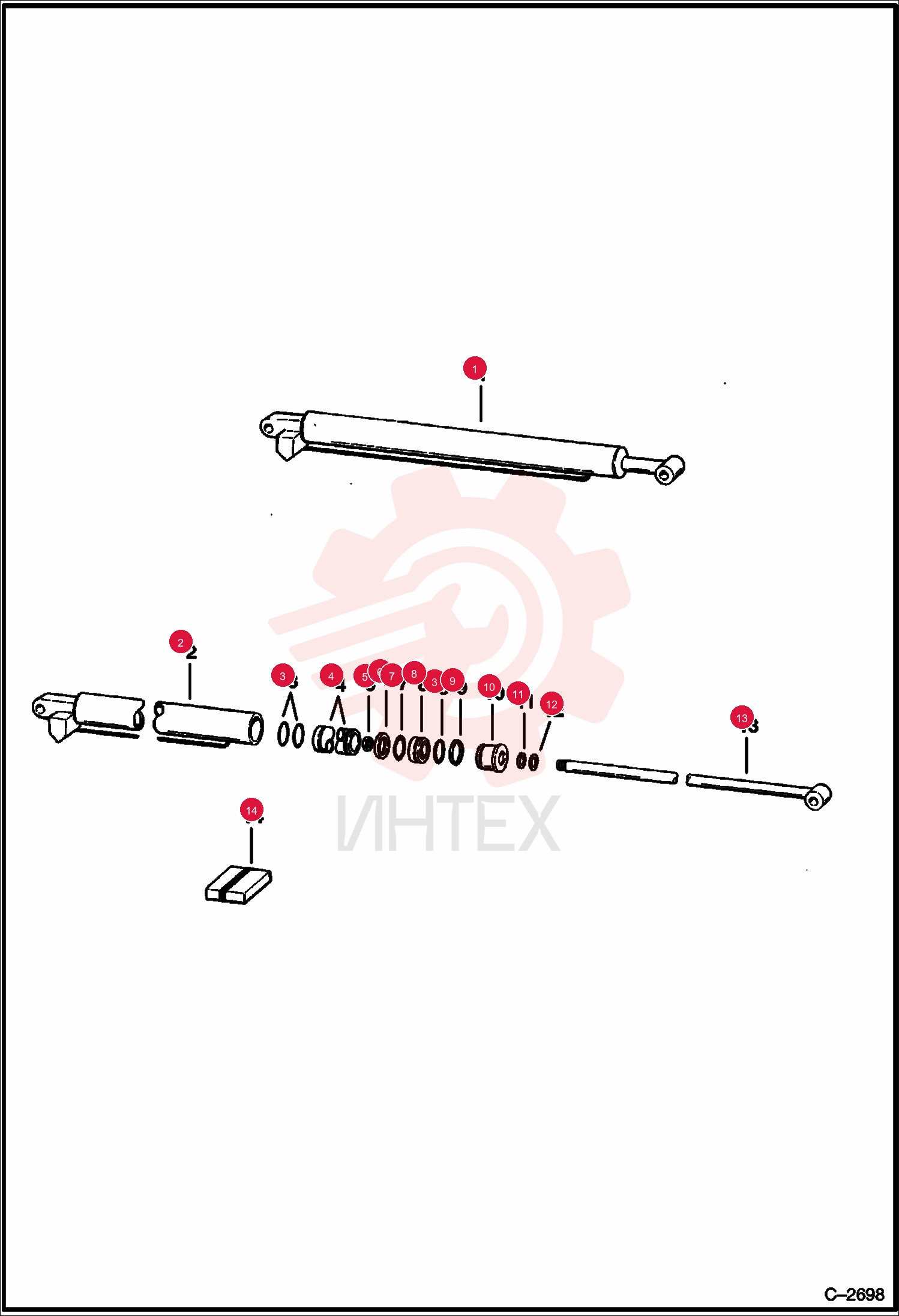

TILT TUBE 6592049 (2)

TILT TUBE 6592049 (2)

TILT TUBE 6592049 (2)

1 6592049

  • 6592049 - TILT TUBE

2 54K40224

  • 54K40224 - O-RING
  • Was 25K40224

3 6591664

  • 6591664 - STOP

4 6810539

  • 6810539 - NUT
  • Was 6804592

5 947088

  • 947088 - RING
  • BACK-UP

6 54K30218

  • 54K30218 - 0-RING
  • Was 25K30218

7 6803870

  • 6803870 - PISTON
  • Was 6553912

8 73K232

  • 73K232 - RING
  • BACK-UP
  • back-up - Was 80K000232B

9 6667326

  • 6667326 - SEAL
  • U-Cup - Was 6538141

10 6690707

  • 6690707 - WIPER
  • ROD CYL
  • Was 6665086

11 6591663

  • 6591663 - SHAFT

12 7135537

  • 7135537 - SEAL KIT
  • W/Ref. 3
  • 6
  • 7
  • 9
  • 11 & 12 - Was 6804702
