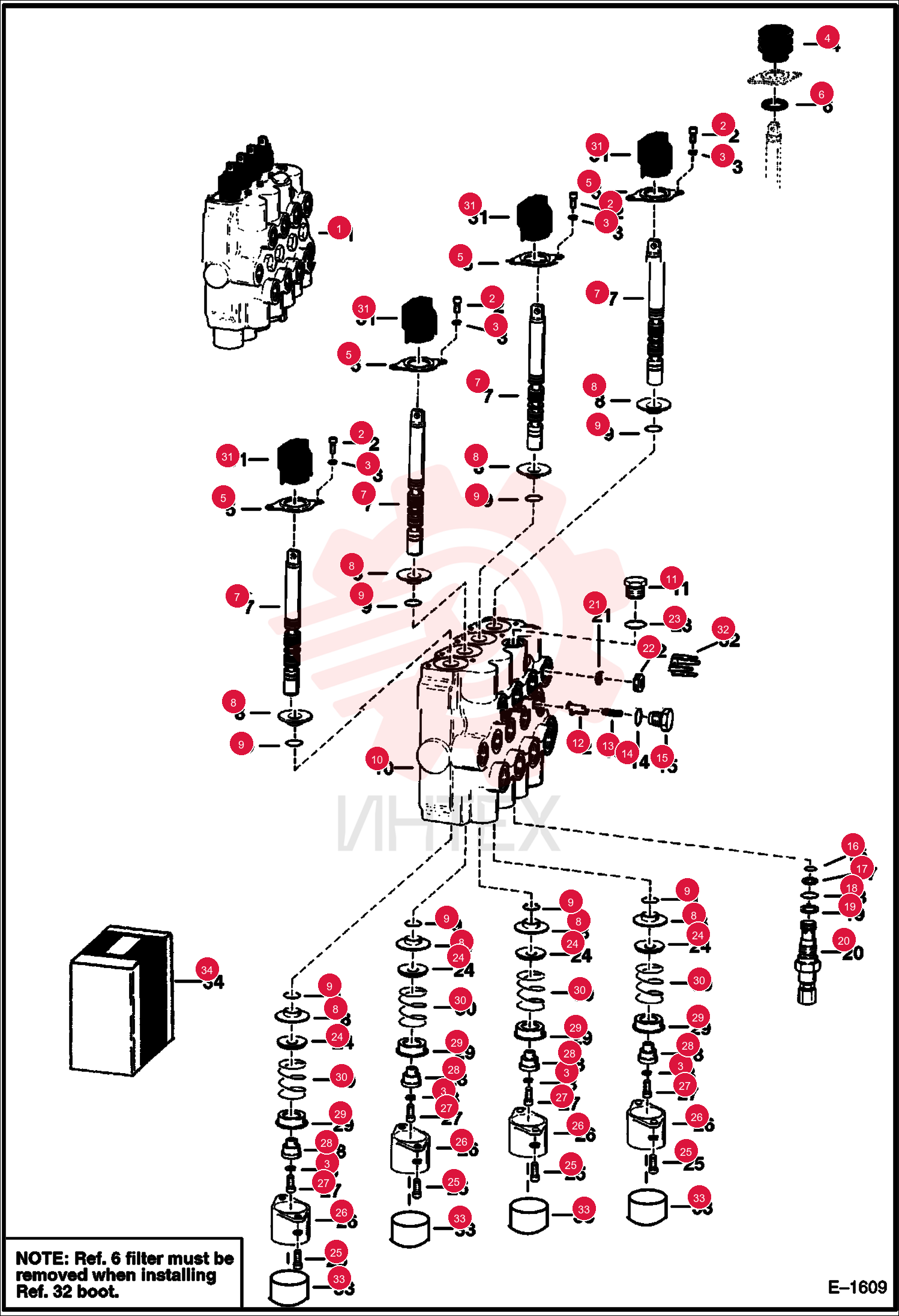

VALVE 6592964

VALVE 6592964

VALVE 6592964

1 6592964

  • 6592964 - VALVE
  • Ref. 2-33

2 6588165

  • 6588165 - SCREW
  • Was 73G000410B

3 22E4

  • 22E4 - WASHER

4 6592123

  • 6592123 - RETAINER

5 6592119

  • 6592119 - SPOOL
  • Was NSS

6 6592103

  • 6592103 - BUSHING
  • See Serviceletter 5 Jan. 87

7 6538466

  • 6538466 - BUSHING
  • With P/N 6538466 stamped on top

8 6665089

  • 6665089 - SEAL 5
  • lip seal - Was 6659554

9 6646372

  • 6646372 - SEAL
  • QUAD RING
  • quad ring seal

10 24K7

  • 24K7 - PLUG
  • W/Ref. 23

11 6592115

  • 6592115 - SEAT

12 6592117

  • 6592117 - SPRING
  • LOAD CHECK

13 79K8

  • 79K8 - O RING 10

14 6592116

  • 6592116 - NUT
  • load check

15 7219324

  • 7219324 - VALVE
  • RELIEF
  • W/ O-rings - pressure to be set in field - Was 6686360

16 6593680

  • 6593680 - RETAINER

17 79K10

  • 79K10 - O RING 10

18 7211397

  • 7211397 - WASHER
  • SPRING
  • Was 6587523

19 6588164

  • 6588164 - SCREW
  • Was 73G000412B

20 7101345

  • 7101345 - BONNET
  • DETENT HYD VALVE
  • W/.50" flange - Was 6587633

21 6592109

  • 6592109 - ADAPTER

22 6592100

  • 6592100 - COLLAR

23 6587580

  • 6587580 - SPRING
  • Was 6592106

24 6587763

  • 6587763 - BOOT
  • See note

25 6587315

  • 6587315 - RESTRICTR
  • 0.11

26 6662848

  • 6662848 - CAP
  • Use with 6587633 bonnet

27 6816250

  • 6816250 - KIT
  • SEAL
  • - Ref. 9
  • 25 & 31 - For One Spool - Was 6661315

28 6816251

  • 6816251 - KIT
  • SEAL
  • - Ref. 9
  • 14
  • 16-19
  • 23 & 31 - Was 6803606

29 6661328

  • 6661328 - SEAL KIT
  • Ref. 16-19 - Was 6592474

30 6809425

  • 6809425 - SEAL KIT
  • Ref. 14 & 16-19 - Was 6586461
