319.0
/

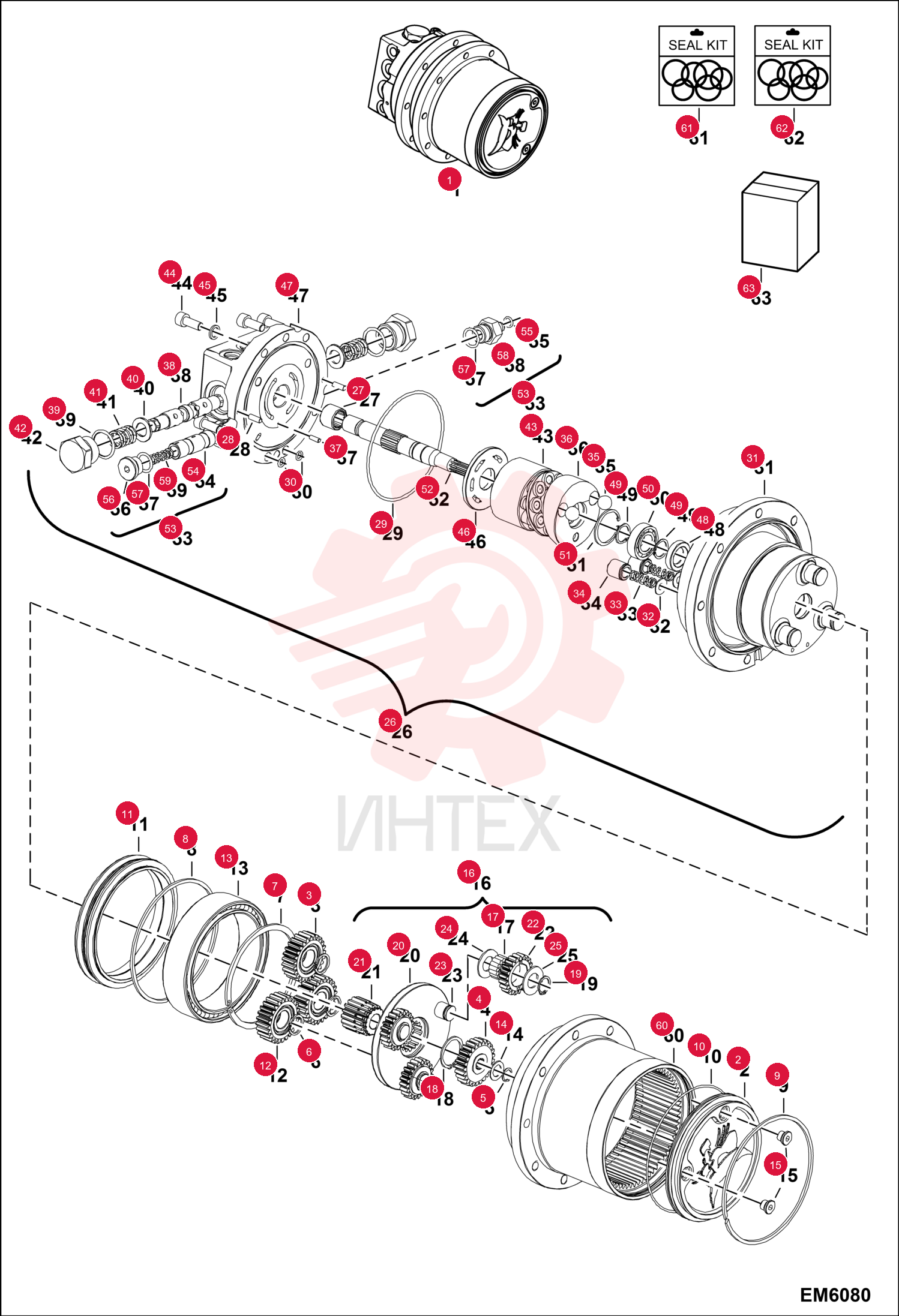

MOTOR DRIVE 2 SPD

MOTOR DRIVE 2 SPD

MOTOR DRIVE 2 SPD

1 6691262

  • 6691262 - MOTOR DRIVE 2 SPD
  • W/Ref. 2-60

2 7000403

  • 7000403 - COVER END

3 7000404

  • 7000404 - GEAR PLANETARY

4 7015440

  • 7015440 - GEAR
  • SUN

5 6688118

  • 6688118 - RING

6 7000406

  • 7000406 - RING EXTERNAL SNAP

7 7000407

  • 7000407 - ACCESSORY SEEGER D.100

8 7000408

  • 7000408 - RING INTERNAL SNAP BR125

9 7000409

  • 7000409 - RETAINER INT. BR130

10 7000410

  • 7000410 - ORING

11 7000411

  • 7000411 - SEAL DOUBLE FRONT

12 7000412

  • 7000412 - BEARING NEEDLE

13 7000413

  • 7000413 - BEARING BALL

14 6688119

  • 6688119 - KIT

15 6676161

  • 6676161 - PLUG
  • Was NLA

16 7015441

  • 7015441 - SET
  • GEAR
  • W/Ref. 17-25

17 6667763

  • 6667763 - BEARING

18 7000422

  • 7000422 - RING EXTERNAL SNAP

19 7000421

  • 7000421 - RING EXTERNAL SNAP

20 7015442

  • 7015442 - CARRIER

21 7000416

  • 7000416 - GEAR SUN

22 7015443

  • 7015443 - GEAR

23 7000418

  • 7000418 - PIN

24 7000419

  • 7000419 - WASHER

25 7000420

  • 7000420 - WASHER

26 7000961

  • 7000961 - MOTOR HYDRAULIC
  • W/Ref. 27-59

27 6667781

  • 6667781 - BEARING

28 6688111

  • 6688111 - PIN

29 6667779

  • 6667779 - O-RING

30 7000962

  • 7000962 - HUB

31 6688101

  • 6688101 - WASHER

32 6688100

  • 6688100 - SPRING

33 6688099

  • 6688099 - PISTON

34 6688107

  • 6688107 - BALL

35 6693117

  • 6693117 - SWASH PLATE 9-15 DEGREES
  • 9°-15°

36 6667782

  • 6667782 - DOWEL PIN

37 6698694

  • 6698694 - SPOOL
  • VALVE

38 6667777

  • 6667777 - O-RING

39 6667784

  • 6667784 - SPRING
  • Was 6688105

40 6667783

  • 6667783 - PLUG
  • Was 6688104

41 6667778

  • 6667778 - PISTON
  • MOTOR TRAVEL
  • Was 6688112

42 6688108

  • 6688108 - BOLT

43 6667788

  • 6667788 - WASHER

44 7000963

  • 7000963 - COVER

45 6667774

  • 6667774 - SEAL

46 7010972

  • 7010972 - RING RETAINING

47 7015444

  • 7015444 - BEARING
  • BALL

48 6667762

  • 6667762 - SNAP RING

49 7000435

  • 7000435 - SHAFT MOTOR

50 6688117

  • 6688117 - VALVE
  • W/Ref. 54-59

51 7013330

  • 7013330 - SPOOL

52 25K20010

  • 25K20010 - O RING 10
  • Was 6683434

53 7000964

  • 7000964 - PLUG

54 6679861

  • 6679861 - O-RING
  • Was 7000965

55 7000966

  • 7000966 - FITTING

56 7000402

  • 7000402 - HOUSING OUTPUT

57 7000959

  • 7000959 - KIT
  • SEAL
  • basic - W/Ref. 10
  • 30
  • 29
  • 39
  • 48 & 57

58 7000960

  • 7000960 - KIT REBUILT
  • major rebuild - W/Ref. 10
  • 11
  • 30
  • 29
  • 39
  • 48 & 57

59 7310948

  • 7310948 - KIT PLUG
