Bobcat
/
319.0
/

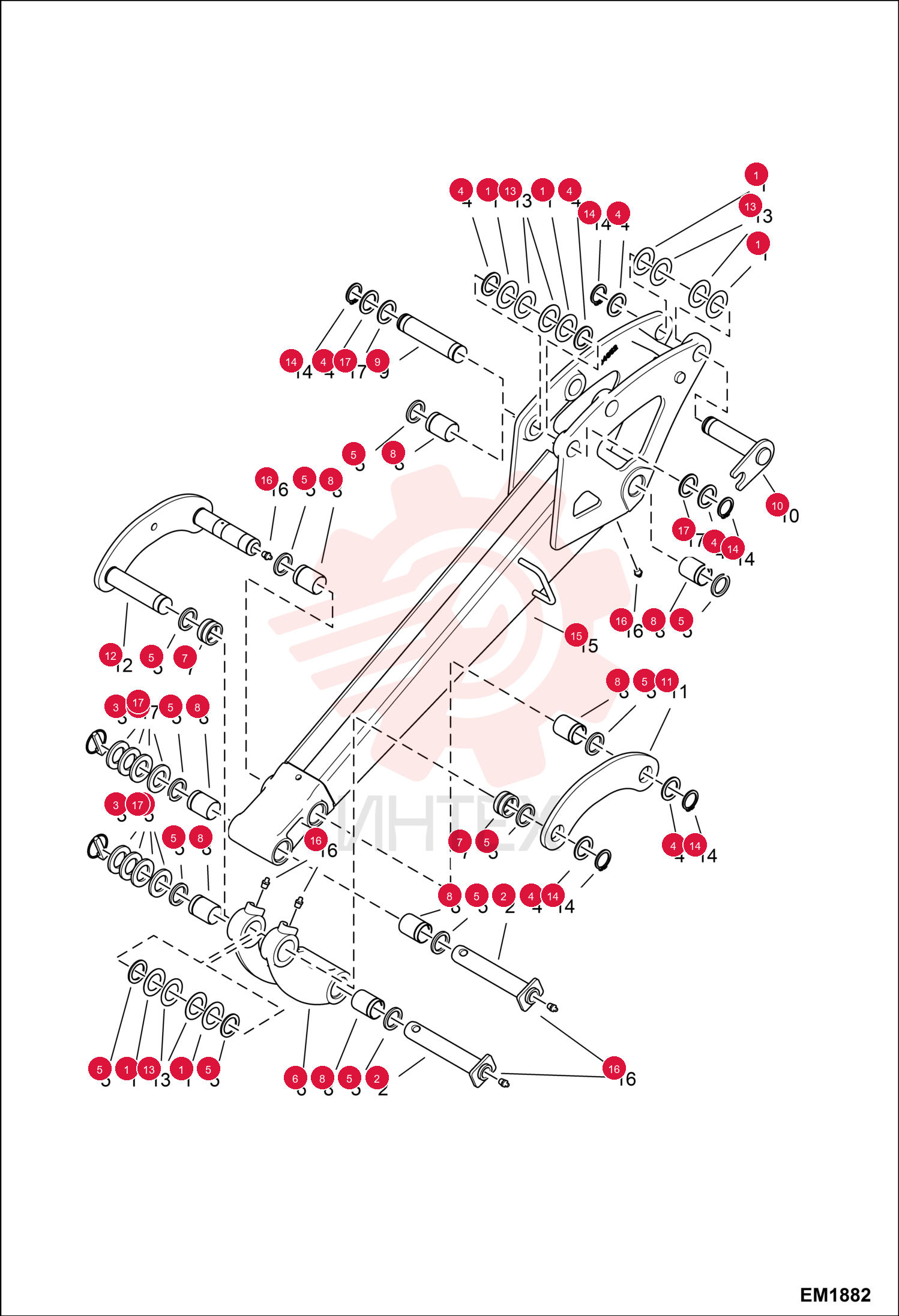

SHIM 5 6533856 (3)

SHIM 5 6533856 (3)

SHIM 5 6533856 (3)

1 6533856

  • 6533856 - SHIM 5

2 6539737

  • 6539737 - PIN
  • PIVOT
  • 7.25" (183 mm) long - 7.25" (183 mm) long

3 6560382

  • 6560382 - PIN
  • LOCK

4 6589699

  • 6589699 - WASHER

5 6653534

  • 6653534 - SEAL
  • OIL 5

6 6802218

  • 6802218 - LINK
  • BUCKET MACHINED
  • Was 7302031

7 6802588

  • 6802588 - BUSHING
  • PRESS FIT

8 7100276

  • 7100276 - BUSHING

9 7103247

  • 7103247 - PIN

10 7106624

  • 7106624 - PIN
  • W/A

11 7107768

  • 7107768 - LINK
  • GUIDE LOOSE

12 7107769

  • 7107769 - LINK WA
  • GUIDE

13 7120208

  • 7120208 - WASHER

14 22J19

  • 22J19 - SNAP RING

15 7136952

  • 7136952 - ARM W/A
  • Was 7104576

16 10H25

  • 10H25 - FTG GREASE STRAIGHT

17 1EM280

  • 1EM280 - WASHER
  • FLAT
  • Was 1EM270
