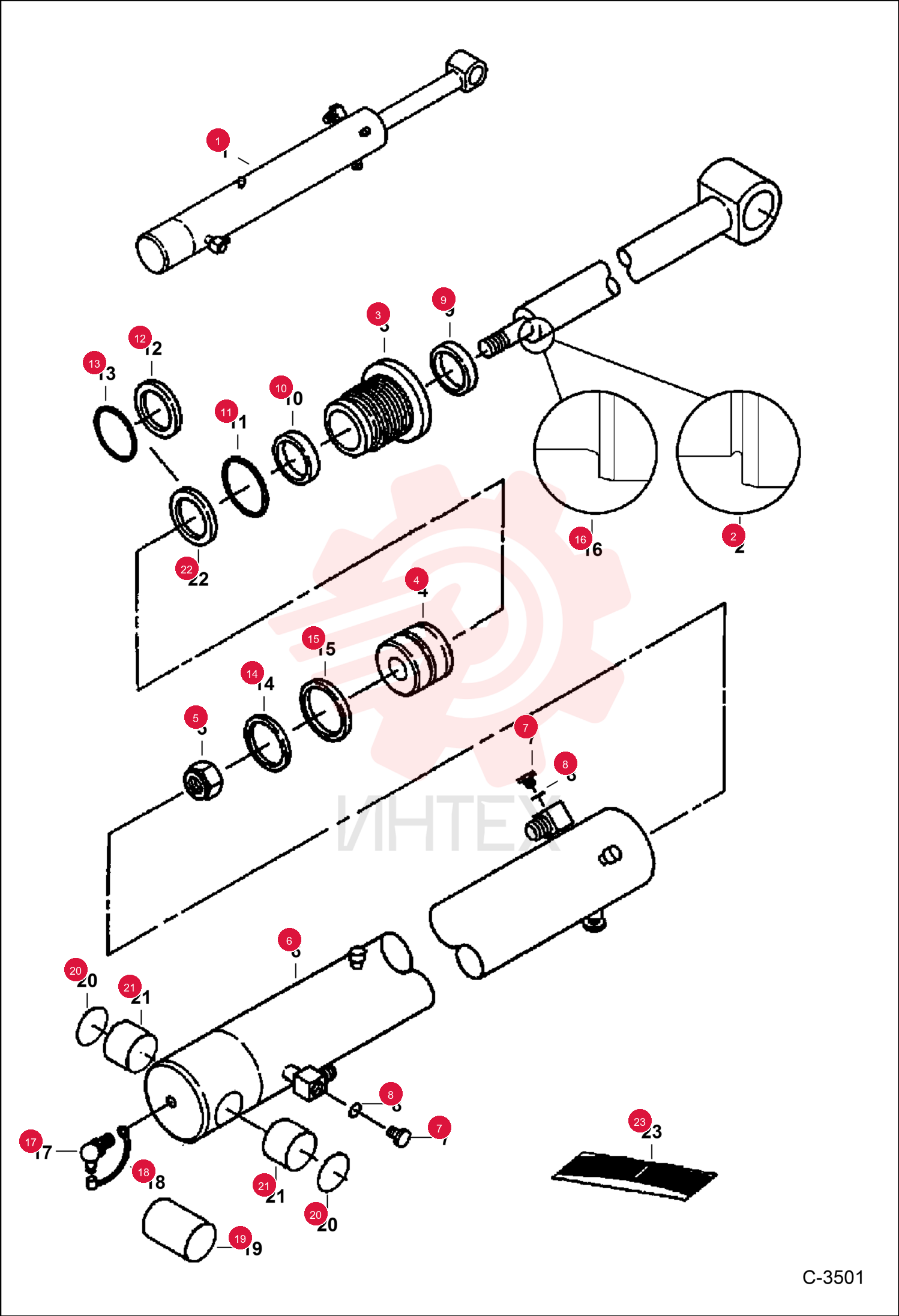

CYLINDER, BOOM
1 7156579
- 7156579 - CYLINDER
- BOOM
- Ref. 3-21 - Was 7148239
2 6814983
- 6814983 - HEAD
3 7147318
- 7147318 - PISTON
- Was 6814984
4 6810540
- 6810540 - NUT
- Was 92D000020B
5 6814981
- 6814981 - HOUSING
- Also Order (2) Ref. 20 & (2) Ref. 21
6 6812171
- 6812171 - PLUG
- W/Ref. 8 - flat boss face - hex head
7 47K5
- 47K5 - PLUG
- W/Ref. 8 - tapered boss face - allen socket head
8 75K6
- 75K6 - O-RING
- flat boss face
9 79K6
- 79K6 - O RING 10
- tapered boss face
10 6686999
- 6686999 - WIPER
- ROD CYL
- Was 6666544
11 6667327
- 6667327 - SEAL
- ROD
12 82K236
- 82K236 - O-RING
- Was 58K000236B
13 73K234
- 73K234 - RING
- BACK-UP
- back-up - Was 80K234
14 54K40300
- 54K40300 - O-RING
- Was 58K234
15 54K30226
- 54K30226 - O-RING
- Was 25K30226
16 6513466
- 6513466 - PISTON RG
- piston
17 7148237
- 7148237 - ROD
18 12H15
- 12H15 - FTG GREASE 90
19 6652943
- 6652943 - COVER
- grease fitting
20 6596578
- 6596578 - BUSHING
- Use W/Ref. 1 (NLA/6802050 Cylinder) & Ref. 6 (NLA/6596580 Housing)
21 6652915
- 6652915 - SEAL
- OIL
- Dust - Use W/Cylinder 6803801 & 6806214
22 6803982
- 6803982 - BUSHING
- Incl. W/6803801 Cylinder
- Ref. 6 (6803811 Housing)
- Ref. 1 (6810559 Cylinder) & 6814980 Cylinder
23 7162060
- 7162060 - KIT
- SEAL
- Ref. 5 & 9-15 - Was 7156581
