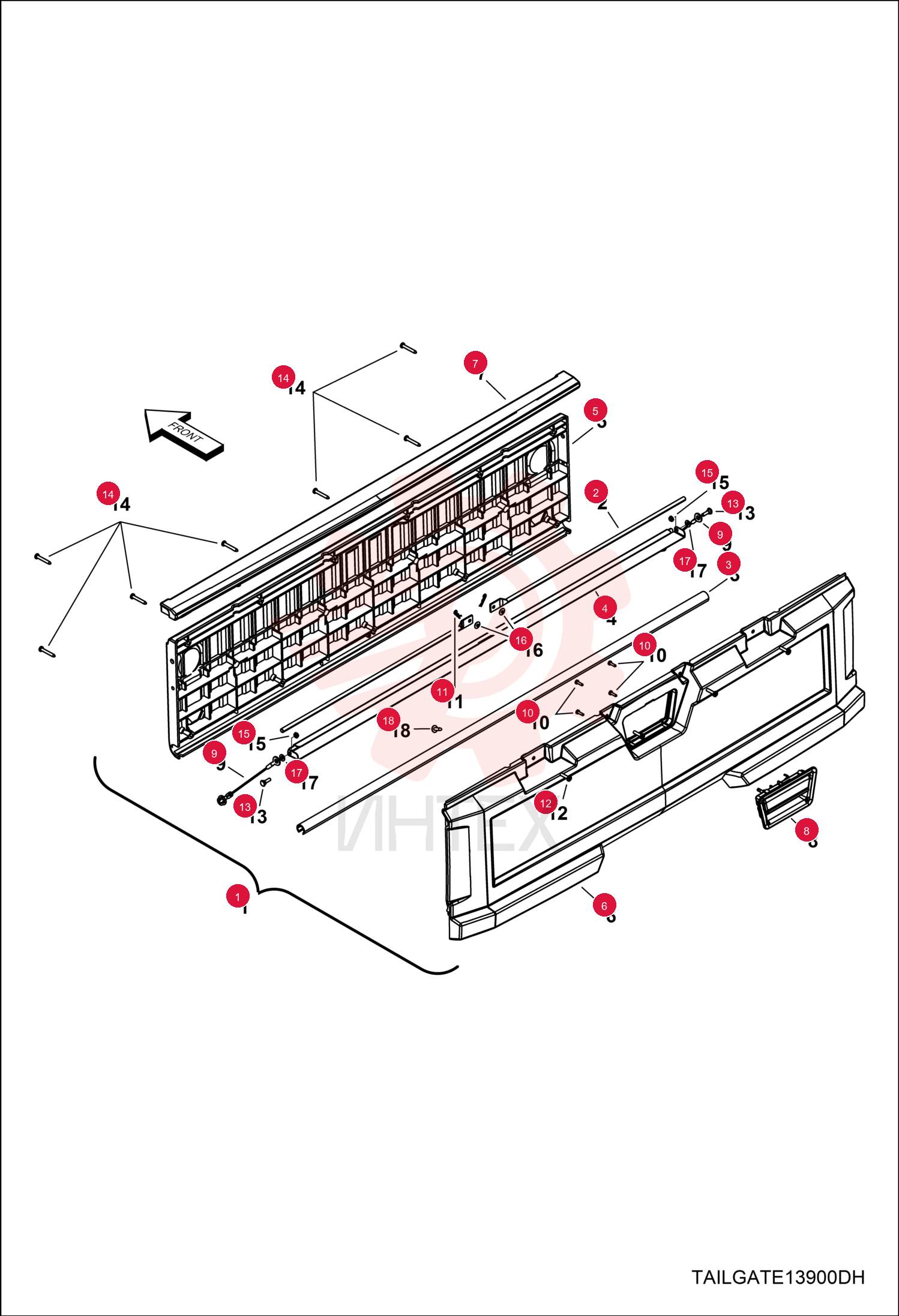

TAILGATE 7027786 (1)

TAILGATE 7027786 (1)

TAILGATE 7027786 (1)

1 7027786

  • 7027786 - TAILGATE
  • Ref. 2-18

2 7016586

  • 7016586 - ROD

3 7027649

  • 7027649 - TUBE
  • PIVOT TAILGATE

4 7247908

  • 7247908 - BRACKET

5 7016223

  • 7016223 - BRACKET
  • TAILGATE

6 7247924

  • 7247924 - PANEL
  • TAILGATE INNER

7 7027811

  • 7027811 - PANEL
  • TAILGATE INNER

8 7027815

  • 7027815 - PANEL
  • TAILGATE OUTER

9 7027814

  • 7027814 - CAP
  • TAILGATE

10 7027719

  • 7027719 - LATCH
  • PADDLE

11 7247926

  • 7247926 - CABLE
  • TAILGATE

12 7027720

  • 7027720 - CABLE
  • TAILGATE

13 7016615

  • 7016615 - SCREW

14 7016542

  • 7016542 - PIN
  • HITCH

15 7016590

  • 7016590 - SCREW

16 7016098

  • 7016098 - BOLT

17 7027742

  • 7027742 - SCREW

18 7016516

  • 7016516 - NUT

19 7016747

  • 7016747 - WASHER

20 7016762

  • 7016762 - WASHER
  • FLAT

21 7016633

  • 7016633 - SCREW
