Bobcat
/
435.0
/

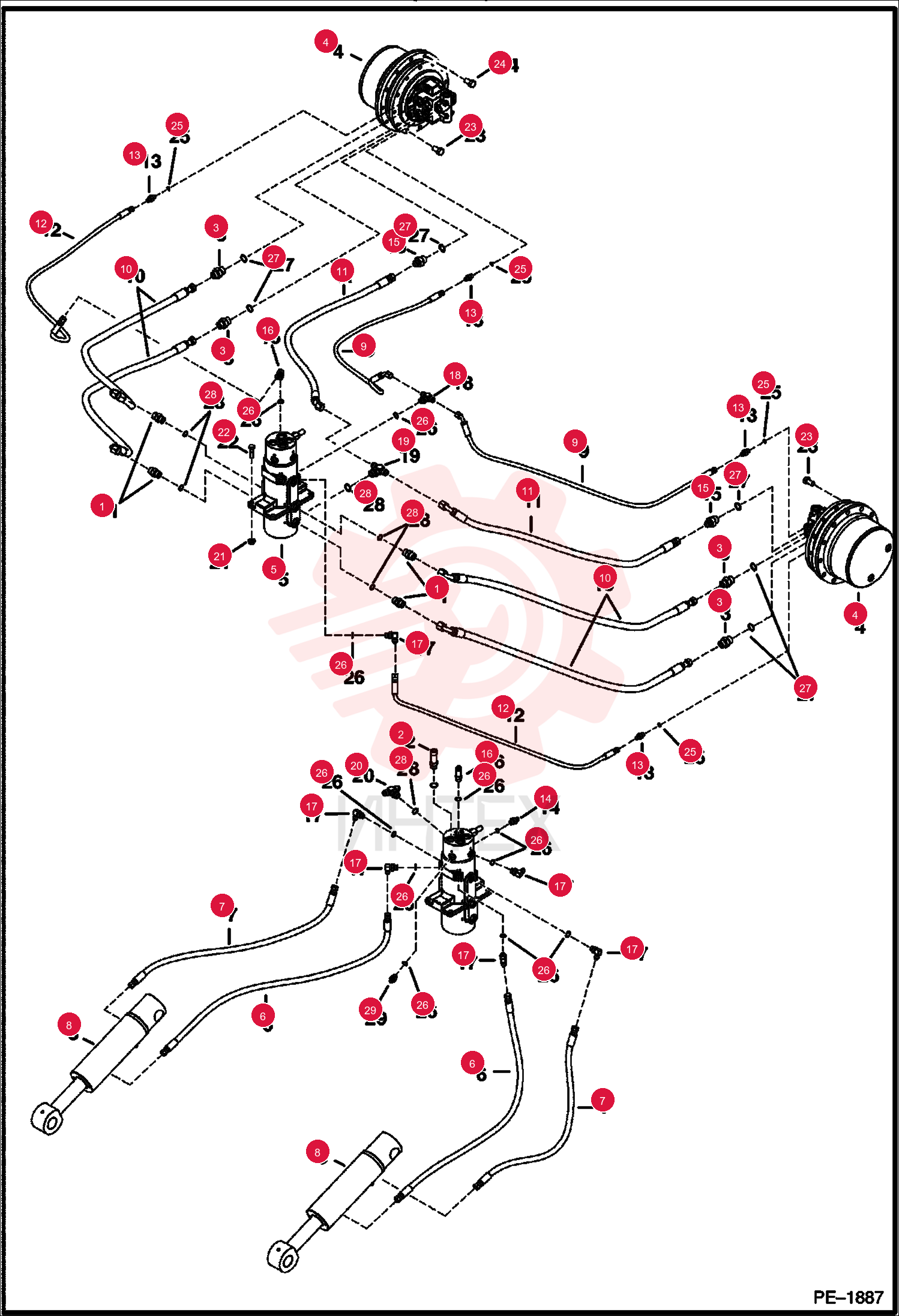

O-RING 10 58K014 (2)

O-RING 10 58K014 (2)

O-RING 10 58K014 (2)

1 58K014

  • 58K014 - O-RING 10
  • face seal

2 6682986

  • 6682986 - ADAPTER
  • W/Ref. 28

3 58K014

  • 58K014 - O-RING 10
  • face seal

4 6682989

  • 6682989 - CONNECTOR
  • W/Ref. 28

5 6683811

  • 6683811 - ADAPTER
  • W/Ref. 27

6 6811778

  • 6811778 - BALL
  • JOINT
  • assy

7 6814831

  • 6814831 - HOSE

8 6814832

  • 6814832 - HOSE

9 6815953

  • 6815953 - CYLINDER

10 7107672

  • 7107672 - HOSE
  • 7/16 thread size

11 6816844

  • 6816844 - HOSE

12 7125151

  • 7125151 - HOSE
  • Was 6816845

13 6816846

  • 6816846 - HOSE

14 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR
  • W/Ref. 25

15 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR
  • W/Ref. 26

16 15KB0810

  • 15KB0810 - FITTING
  • HYD CONNECTOR
  • W/Ref. 27

17 7128584

  • 7128584 - ELBOW
  • W/Ref. 26 - Was 16KB606

18 17KB0406

  • 17KB0406 - FITTING
  • HYD ELBOW
  • 7/16 thread size - manifold - W/Ref. 26

19 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW
  • 9/16 thread size - W/Ref. 26

20 19KB0406

  • 19KB0406 - FITTING
  • HYD TEE
  • 7/16 thread size - Use W/ 7107672 hose - W/Ref. 26

21 19KB0606

  • 19KB0606 - FITTING
  • HYD TEE
  • 9/16 thread size - used with NLA hose - W/Ref. 26

22 19KB0808

  • 19KB0808 - FITTING
  • HYD TEE
  • W/Ref. 28

23 21KB0808

  • 21KB0808 - FITTING
  • HYD TEE
  • W/Ref. 28

24 43DM10

  • 43DM10 - NUT FLANGED HEX
  • Was 42DM00010B

25 53CM1040

  • 53CM1040 - SCREW

26 55CM1425

  • 55CM1425 - SCREW

27 55CM1445

  • 55CM1445 - SCREW

28 79K4

  • 79K4 - O RING 10

29 79K6

  • 79K6 - O RING 10

30 79K10

  • 79K10 - O RING 10

31 79K8

  • 79K8 - O RING 10

32 79K6

  • 79K6 - O RING 10

33 7161014

  • 7161014 - TEE
  • W/motion alarm option

34 17KB0406

  • 17KB0406 - FITTING
  • HYD ELBOW
  • Use W/hose W/straight end

35 15KB0406

  • 15KB0406 - FITTING
  • HYD CONNECTOR
  • Use W/ hose W/ 90 degree end
