Главная
/
Бренды
/
Bobcat
/
435.0
/

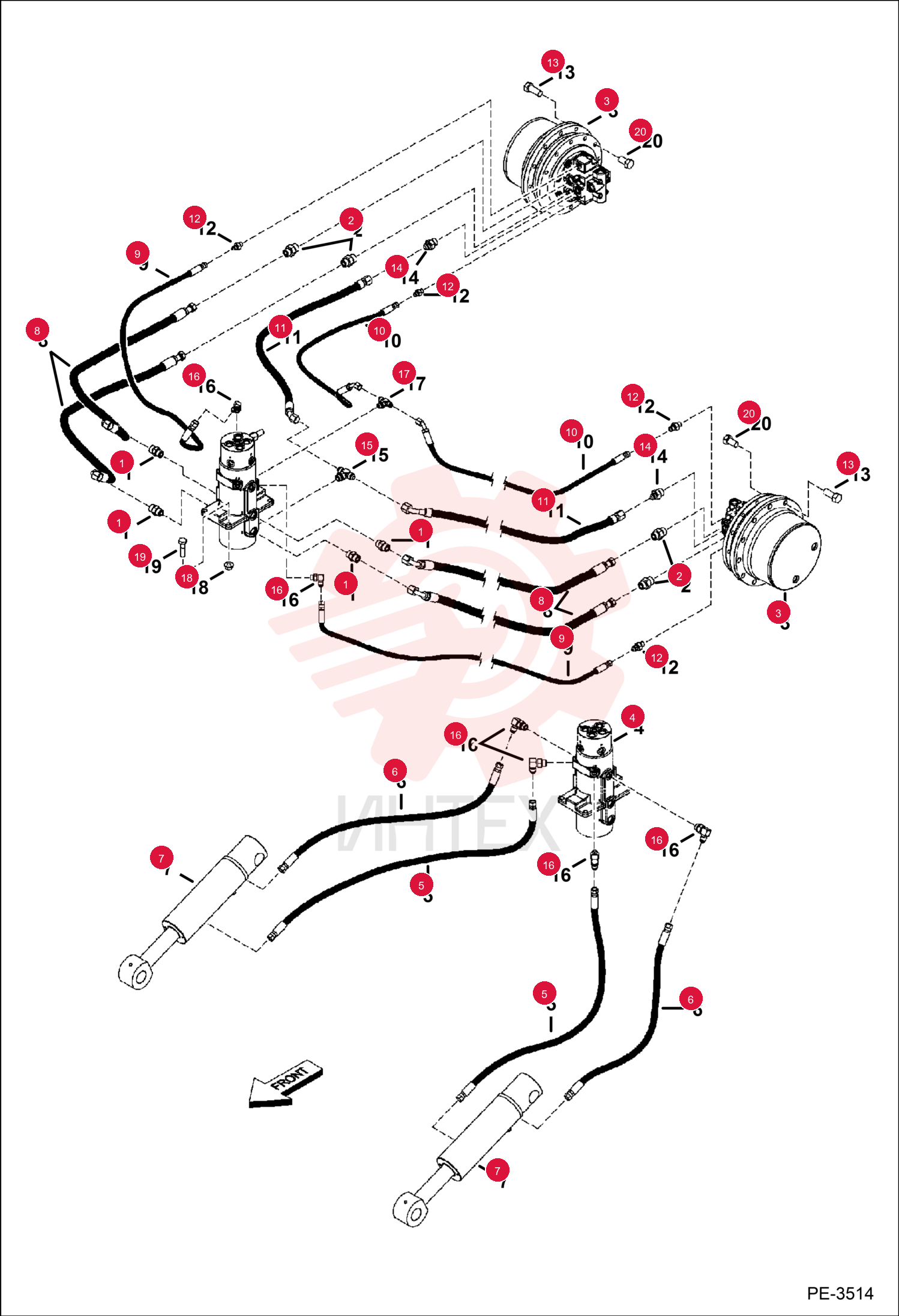

O-RING 10 58K014 (3)

O-RING 10 58K014 (3)

O-RING 10 58K014 (3)

1 58K014

  • 58K014 - O-RING 10
  • face seal

2 79K8

  • 79K8 - O RING 10

3 6682986

  • 6682986 - ADAPTER

4 58K014

  • 58K014 - O-RING 10
  • face seal

5 79K10

  • 79K10 - O RING 10

6 6683811

  • 6683811 - ADAPTER

7 6689796

  • 6689796 - MOTOR
  • MOTOR HYD
  • NLA - travel W/planetary - Ref. 2-28 - Was 6689796

8 6811778

  • 6811778 - BALL
  • JOINT
  • - assy

9 6814831

  • 6814831 - HOSE

10 6814832

  • 6814832 - HOSE

11 6815953

  • 6815953 - CYLINDER

12 6816844

  • 6816844 - HOSE

13 6816846

  • 6816846 - HOSE

14 7107672

  • 7107672 - HOSE

15 7125151

  • 7125151 - HOSE

16 79K4

  • 79K4 - O RING 10

17 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

18 55CM1445

  • 55CM1445 - SCREW

19 79K10

  • 79K10 - O RING 10

20 15KB0810

  • 15KB0810 - FITTING
  • HYD CONNECTOR

21 79K8

  • 79K8 - O RING 10

22 19KB0808

  • 19KB0808 - FITTING
  • HYD TEE

23 79K6

  • 79K6 - O RING 10

24 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

25 79K6

  • 79K6 - O RING 10

26 19KB0406

  • 19KB0406 - FITTING
  • HYD TEE

27 43DM10

  • 43DM10 - NUT FLANGED HEX

28 53CM1040

  • 53CM1040 - SCREW

29 55CM1425

  • 55CM1425 - SCREW
