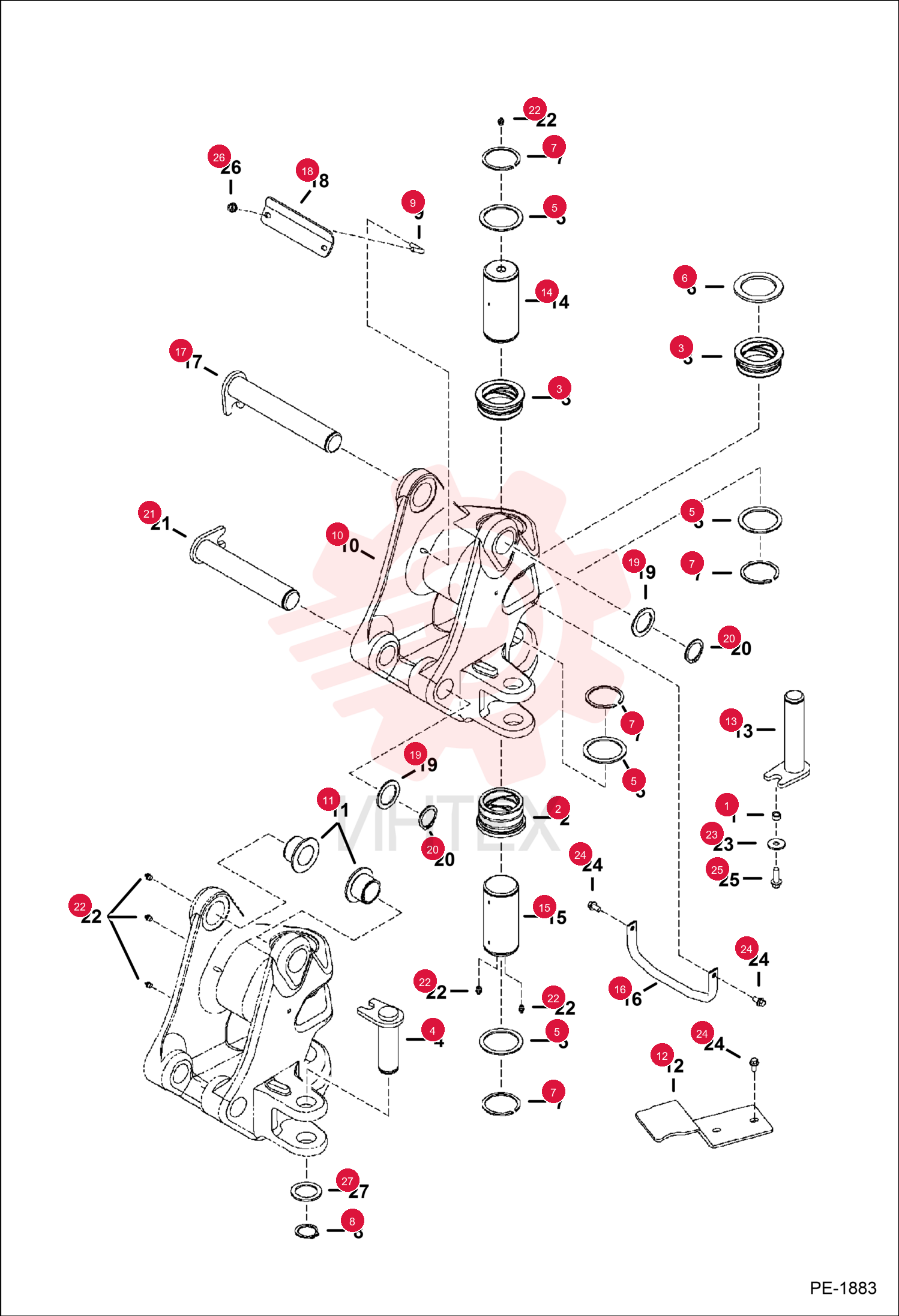

SPACER 6503451 (3)
1 6503451
- 6503451 - SPACER
2 6628101
- 6628101 - BUSHING
3 6628102
- 6628102 - BUSHING
4 6628155
- 6628155 - PIN
5 6628338
- 6628338 - WASHER
6 6628339
- 6628339 - WASHER
7 6668199
- 6668199 - RING
- SNAP
8 6668787
- 6668787 - RING
- SNAP
9 6808211
- 6808211 - BOLT
- angle
10 6811252
- 6811252 - FRAME
- SWING
11 6811457
- 6811457 - BUSHING
12 6812156
- 6812156 - BRACKET
13 6812235
- 6812235 - PIN
14 7135323
- 7135323 - PIN
- Do not use Ref. 5 on bottom side with this pin.
15 7135324
- 7135324 - PIN
- Do not use Ref. 5 on bottom side with this pin.
16 6812656
- 6812656 - SUPPORT
17 6812674
- 6812674 - PIN
18 6812682
- 6812682 - STRAP
19 6812687
- 6812687 - WASHER
20 6812713
- 6812713 - RING
- retaining
21 6817239
- 6817239 - PIN
22 10H25
- 10H25 - FTG GREASE STRAIGHT
- straight
23 17EM120
- 17EM120 - WASHER
- flat
24 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
25 29CM1235
- 29CM1235 - BOLT
26 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
27 6628547
- 6628547 - WASHER
