Bobcat
/
435.0
/

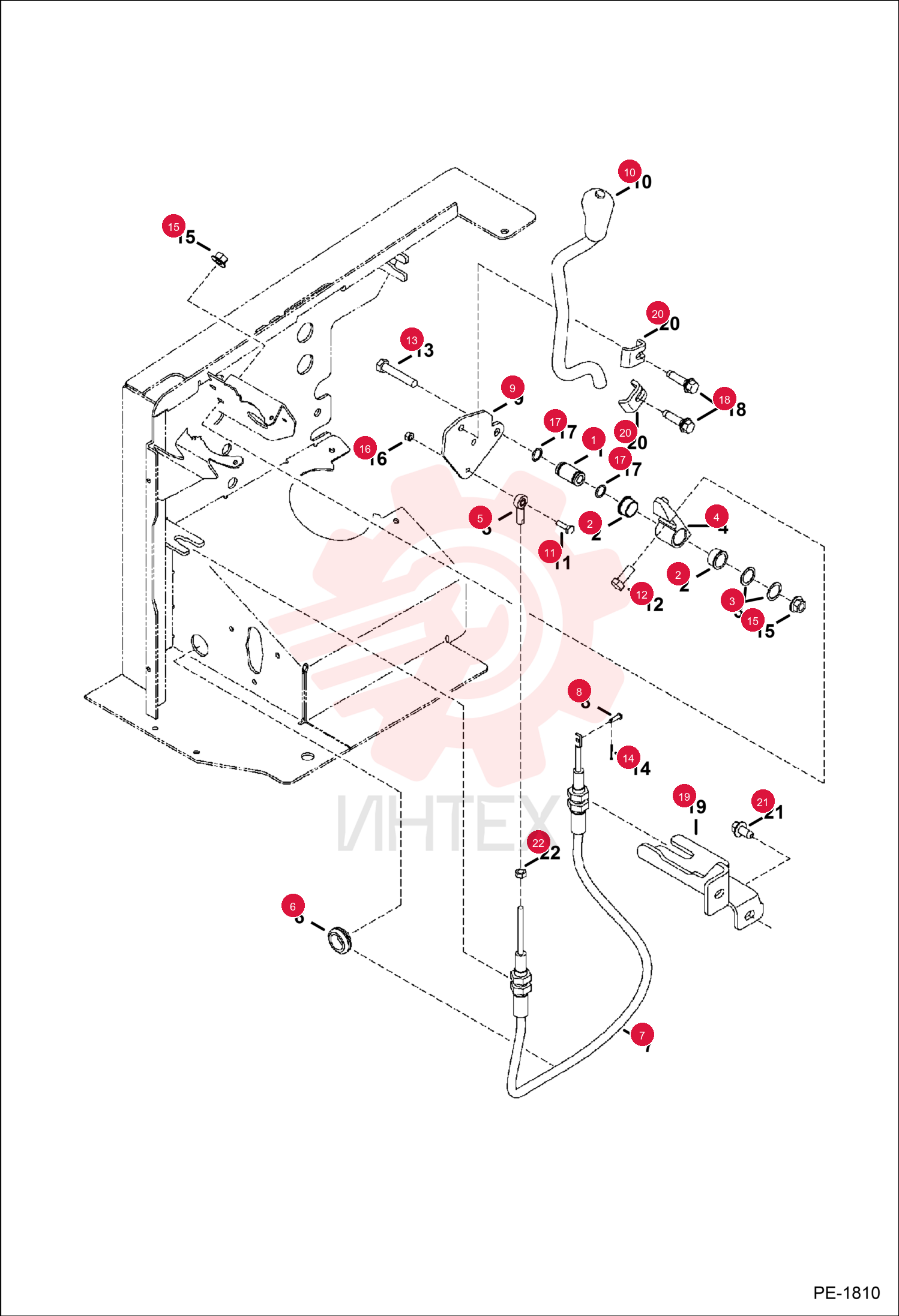

SLEEVE 6536545 (4)

SLEEVE 6536545 (4)

SLEEVE 6536545 (4)

1 6536545

  • 6536545 - SLEEVE

2 6536801

  • 6536801 - BUSHING

3 6536802

  • 6536802 - WASHER

4 6537481

  • 6537481 - MOUNT

5 6593671

  • 6593671 - CONNECTOR

6 6676508

  • 6676508 - GROMMET

7 6679038

  • 6679038 - CABLE

8 6801068

  • 6801068 - PIN

9 7137687

  • 7137687 - PLATE
  • Was 7100534

10 6675832

  • 6675832 - HANDLE
  • back half

11 6675721

  • 6675721 - SWITCH
  • momentary

12 6675831

  • 6675831 - HANDLE
  • front half

13 7117038

  • 7117038 - TUBE

14 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

15 1CM1025

  • 1CM1025 - BOLT

16 1CM1055

  • 1CM1055 - BOLT

17 1F212

  • 1F212 - PIN

18 43DM10

  • 43DM10 - NUT FLANGED HEX

19 1DM6

  • 1DM6 - NUT
  • Was 4DM6

20 58K015

  • 58K015 - O-RING 10

21 84G3720

  • 84G3720 - SCREW THD ROLLING TT
  • Was 84G3724

22 6815898

  • 6815898 - BRACKET

23 6562266

  • 6562266 - CLAMP TUBE

24 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

25 62D4

  • 62D4 - NUT HEX FINISHED GR5
