Bobcat
/
435.0
/

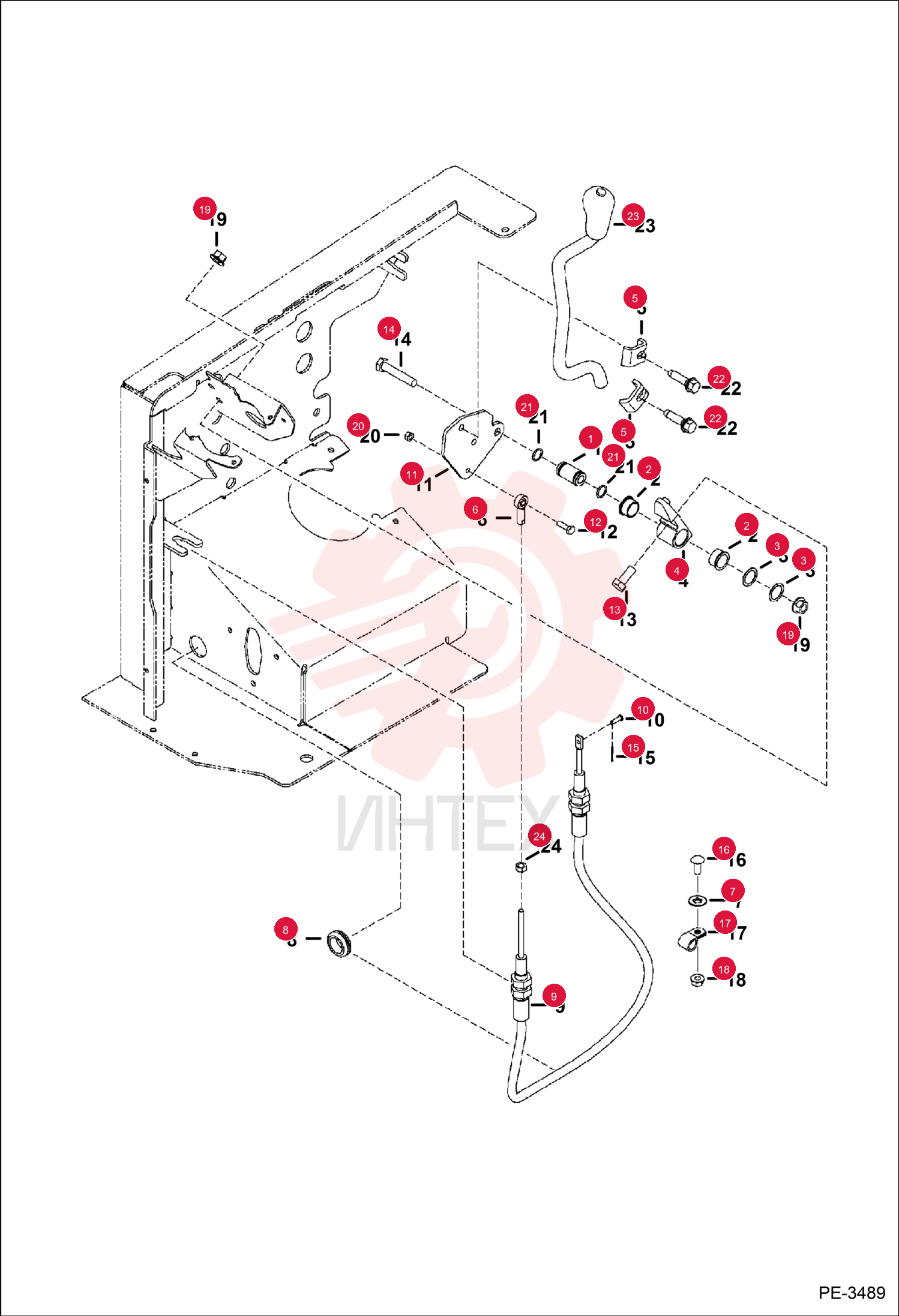

SLEEVE 6536545 (7)

SLEEVE 6536545 (7)

SLEEVE 6536545 (7)

1 6536545

  • 6536545 - SLEEVE

2 6536801

  • 6536801 - BUSHING

3 6536802

  • 6536802 - WASHER

4 6537481

  • 6537481 - MOUNT

5 6562266

  • 6562266 - CLAMP TUBE

6 6593671

  • 6593671 - CONNECTOR

7 6675859

  • 6675859 - RETAINER

8 6676508

  • 6676508 - GROMMET

9 6679038

  • 6679038 - CABLE

10 6801068

  • 6801068 - PIN

11 7137687

  • 7137687 - PLATE

12 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

13 1CM1025

  • 1CM1025 - BOLT

14 1CM1055

  • 1CM1055 - BOLT

15 1F212

  • 1F212 - PIN

16 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

17 30H30

  • 30H30 - CLIP

18 43DM8

  • 43DM8 - NUT FLANGED HEX

19 43DM10

  • 43DM10 - NUT FLANGED HEX

20 1DM6

  • 1DM6 - NUT

21 58K015

  • 58K015 - O-RING 10

22 84G3720

  • 84G3720 - SCREW THD ROLLING TT

23 7117038

  • 7117038 - TUBE

24 6675832

  • 6675832 - HANDLE
  • back half

25 6675721

  • 6675721 - SWITCH
  • momentary

26 6675831

  • 6675831 - HANDLE
  • front half

27 62D4

  • 62D4 - NUT HEX FINISHED GR5
