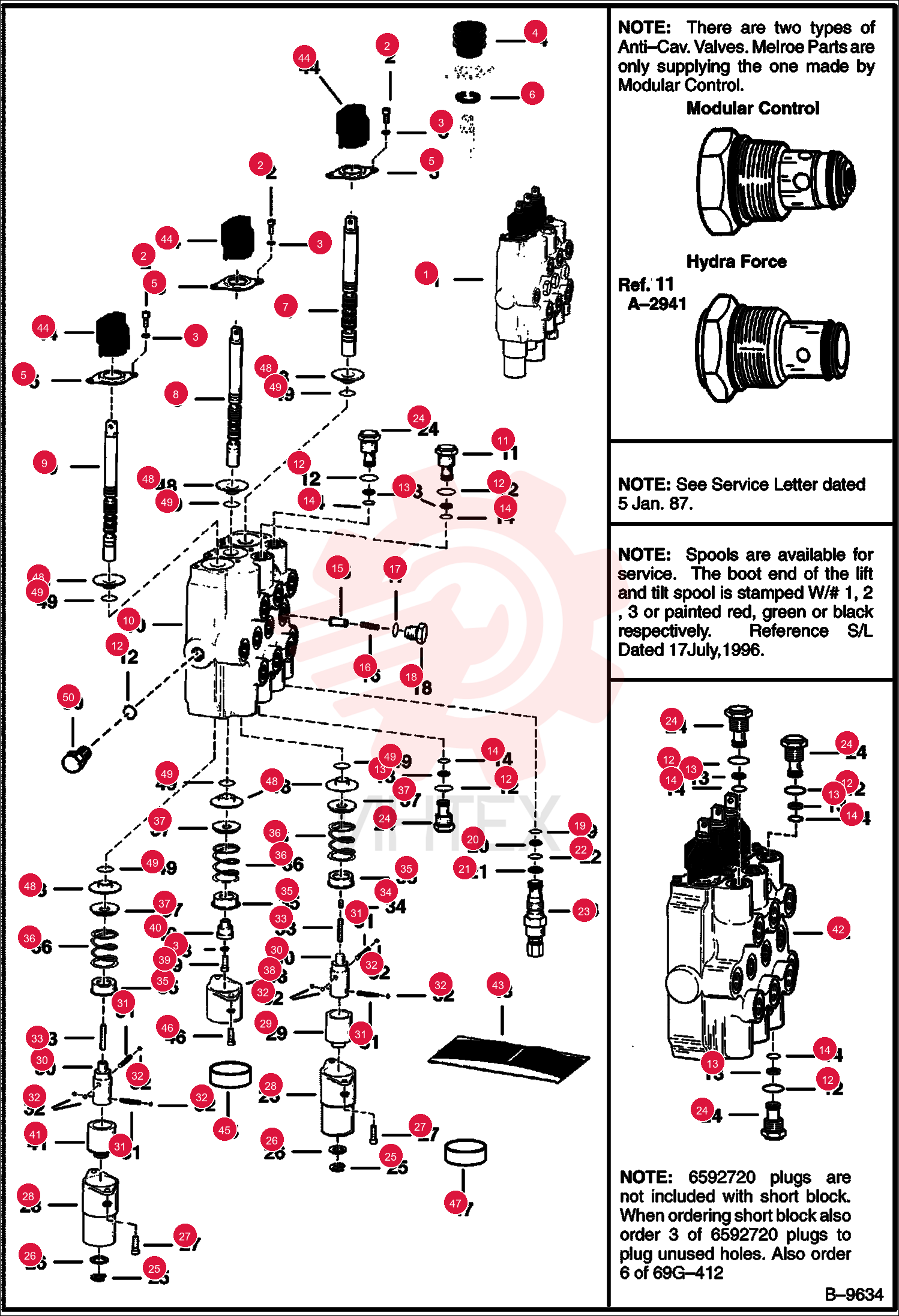

SCREW 6588165 (1)
1 6588165
- 6588165 - SCREW
- Was 73G000410B
2 22E4
- 22E4 - WASHER
3 6592123
- 6592123 - RETAINER
- Stamped
4 6666582
- 6666582 - SPOOL BOM
- lift - #1 or red - SEE NOTE
5 6666583
- 6666583 - SPOOL BOM
- lift - #2 or green - SEE NOTE
6 6666584
- 6666584 - SPOOL BOM
- lift - #3 or black - SEE NOTE
7 6666585
- 6666585 - SPOOL
- TILT
- tilt - #1 or red - SEE NOTE
8 6666586
- 6666586 - SPOOL
- TILT
- tilt - #2 or green - SEE NOTE
9 6666587
- 6666587 - SPOOL
- TILT
- tilt - #3 or black - SEE NOTE
10 6592119
- 6592119 - SPOOL
- aux. - SEE NOTE
11 6667549
- 6667549 - VALVE
- CHECK
- anti-cavitation - W/Ref. 12-14 - Was 6658183
12 79K10
- 79K10 - O RING 10
- Was 91F000007B
13 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
14 58K014
- 58K014 - O-RING 10
- back-up washer required - Was 25K20016
15 6677106
- 6677106 - O-RING
- Back-up washer not required
16 6592115
- 6592115 - SEAT
17 6592117
- 6592117 - SPRING
- LOAD CHECK
18 79K8
- 79K8 - O RING 10
- Was 91F000006B
19 6592116
- 6592116 - NUT
- load check
20 6676195
- 6676195 - VALVE
- RELIEF
- main - Was 6598959
21 6592720
- 6592720 - PLUG
- W/Ref. 12-14
22 799119
- 799119 - RING
23 6592098
- 6592098 - WASHER
24 6588163
- 6588163 - SCREW
- 7/8" long - Was 69G000412B
25 29G416
- 29G416 - BOLT
- 1" long
26 6589226
- 6589226 - COVER
- END
- 0.63" flange
27 6592096
- 6592096 - SLEEVE
28 6587575
- 6587575 - ADAPTER
- Was 6592099
29 6592107
- 6592107 - SPRING
- DETENT 5
30 6592105
- 6592105 - BALL 5
31 6586918
- 6586918 - SCREW
- DETENT
- Was 6535747
32 6596807
- 6596807 - PLUG
- plastic - 0.46" long
33 54K20002
- 54K20002 - O'RING 10
34 6592100
- 6592100 - COLLAR
35 6587580
- 6587580 - SPRING
- Was 6592106
36 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
37 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- W/.50 flange - Was 6587633
38 6592109
- 6592109 - ADAPTER
39 6593349
- 6593349 - SLEEVE
40 6816251
- 6816251 - KIT
- SEAL
- - Ref. 12-14
- 17
- 19-22
- 34
- 44 & 49 - Was 6816717
41 6816250
- 6816250 - KIT
- SEAL
- Ref. 27
- 44 & 49 - For One Spool - Was 6803605
42 6661328
- 6661328 - SEAL KIT
- Ref. 19-22 - Was 6592474
43 6809425
- 6809425 - SEAL KIT
- Ref. 12-14 & 17 - Was 6586461
44 6587763
- 6587763 - BOOT
- Ref. 6 - filter must be removed when installing boot - Was 6583727
45 6662848
- 6662848 - CAP
- Use with 6587633 Bonnet
46 69G414
- 69G414 - BOLT
- Was 6588164
47 6631704
- 6631704 - CAP
48 6592103
- 6592103 - BUSHING
- See Service Letter 5 Jan. 87
49 6538466
- 6538466 - BUSHING
- With part # stamped on face
50 6665089
- 6665089 - SEAL 5
- lip seal - Was 6665098
51 47K7
- 47K7 - PLUG
- Ref. 12
